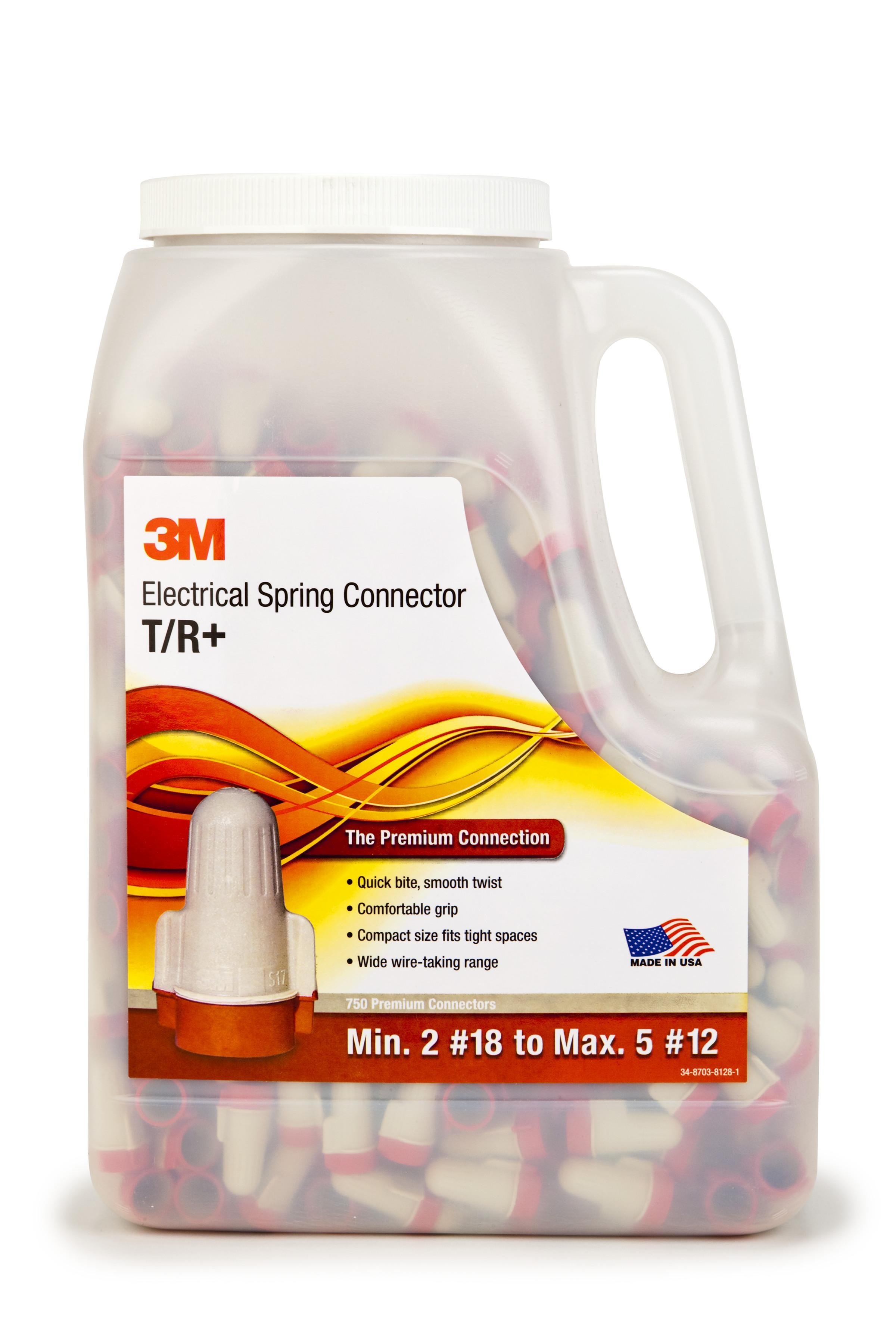

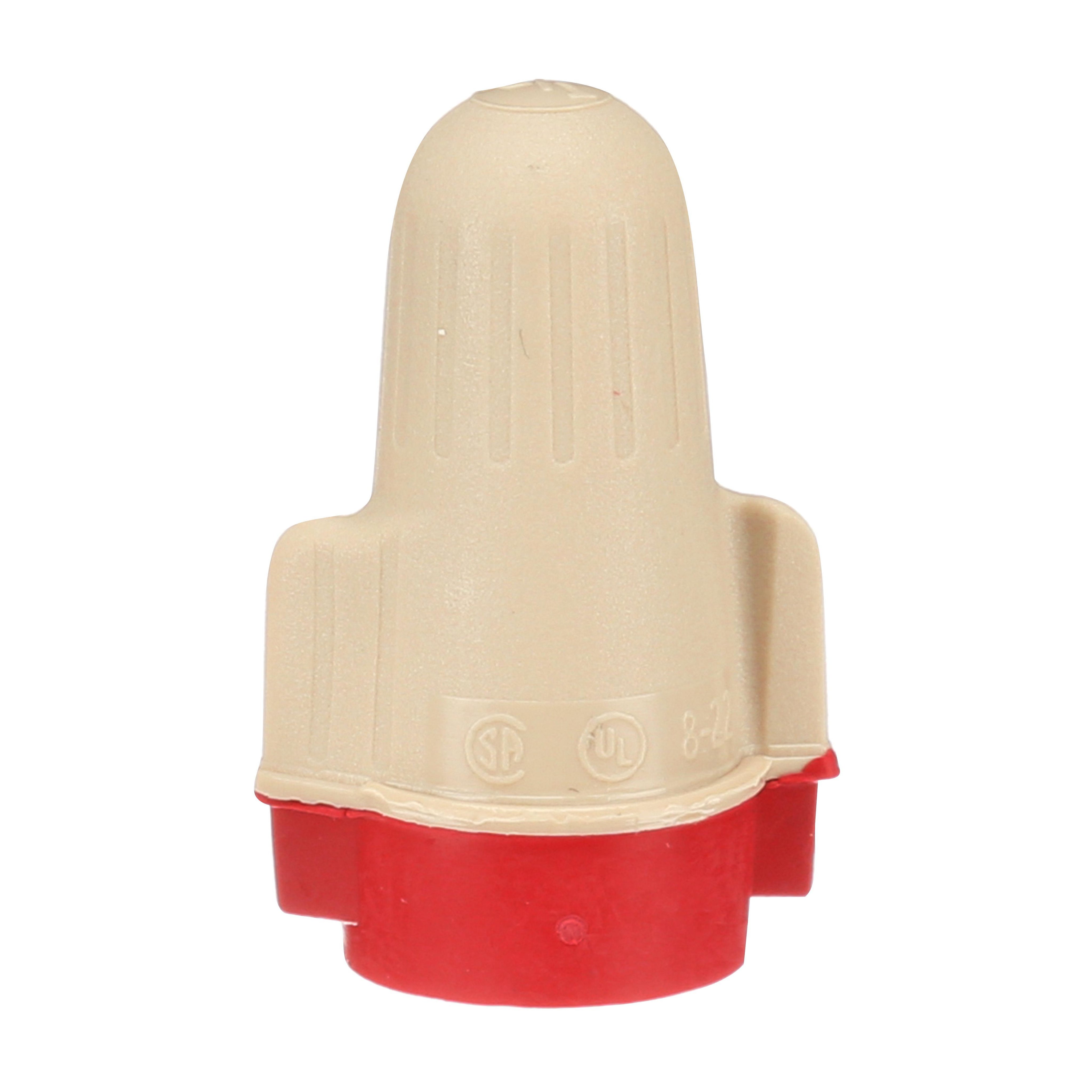

T/R+JUG - 3M™ Performance Plus™ Wire Connector T/R+JUG, 750 per Jug, smooth,comfortable feel
Item Code: 500820
Category
Fixture Connectors (Wire Nuts, Etc.)
Manufacturer 3M
Manufacturer Ref T/R+JUG
Minimum order quantity 750
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
45.9lb
Height
8.62mm
Width
19.88mm
Length
21.38mm
AD All Features
Strong bite for a secure, reliable connection
AD Application

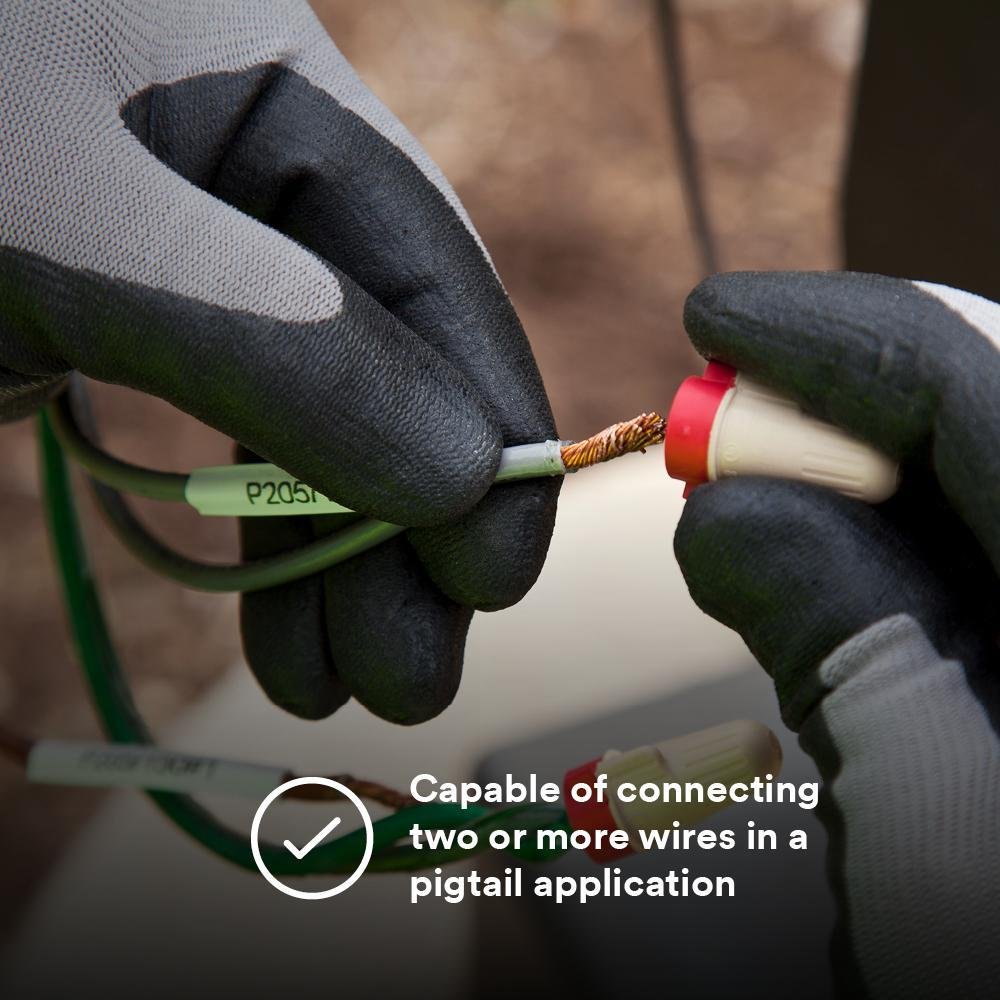

For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection
AD Brand (Description)
3M
AD Country
USA
AD Country Of Origin
US
AD Invoice Description
TW-ON CONN WINGED
AD Item Features 01
Strong bite for a secure, reliable connection
AD Item Features 02
Flexible spring expands for greater wire range and reuse
AD Manufacturer (Description)
3M
AD Package Height
8.6200
AD Package Height UOM
IN
AD Package Length
21.3800
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
45.9000
AD Package Weight UOM
LB
AD Package Width
19.8800
AD Package Width UOM
IN
Brand
3M
Category
FIXTURE CONNECTORS (WIRE NUTS, ETC.)
Spec 1 Attribute
Color
Spec 1 Attribute Value
Red/tan
Spec 2 Attribute
Material
Spec 2 Attribute Value
Spring Steel
Spec 3 Attribute
Shell Style
Spec 3 Attribute Value
Winged
Spec 4 Attribute
Spring Type
Spec 4 Attribute Value
Live Action/Square Wire
Spec 5 Attribute
Temperature Rating
Spec 5 Attribute UOM
deg F
Spec 5 Attribute Value
221
Spec 6 Attribute
Type
Spec 6 Attribute Value
Flame-Retardant
Spec 7 Attribute
Voltage Rating
Spec 7 Attribute UOM
V AC
Spec 7 Attribute Value
600
Spec 8 Attribute
Wire Size
Spec 8 Attribute UOM
AWG
Spec 8 Attribute Value

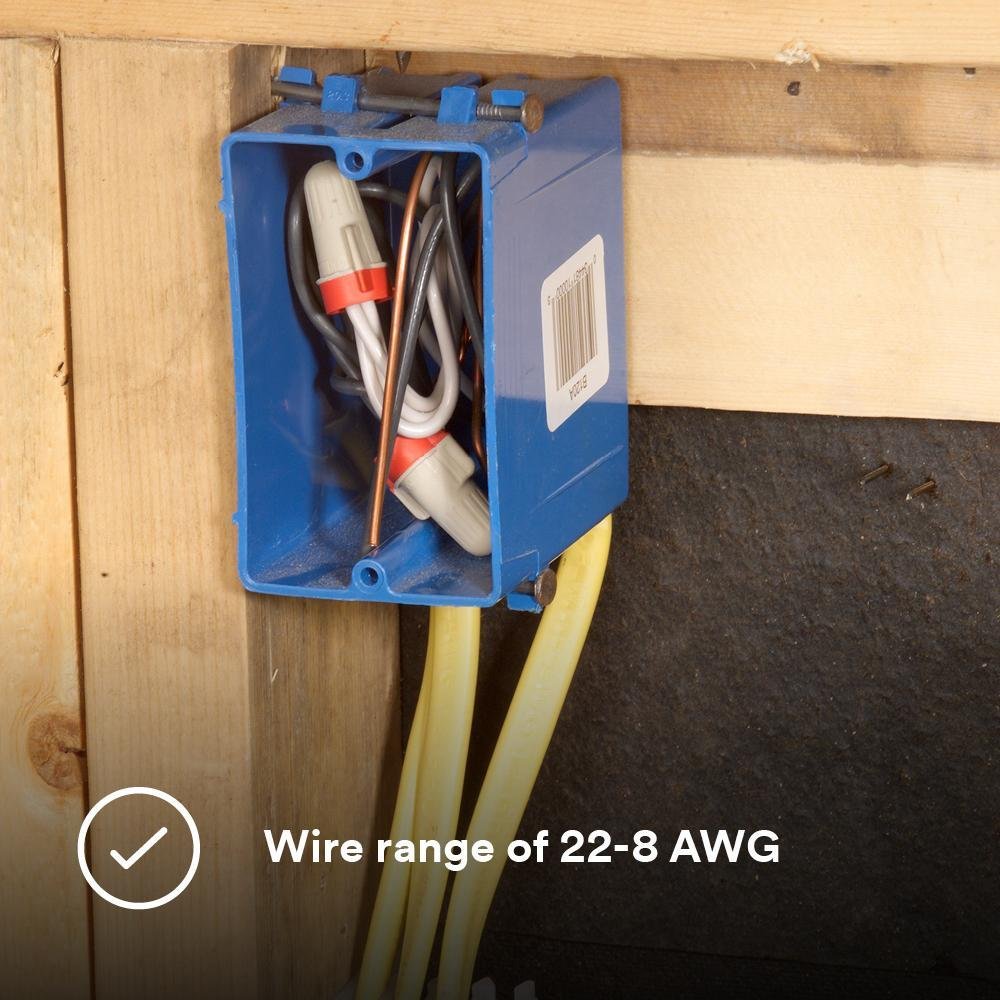

22 To 8
Spec 9 Attribute
Wire Type
Spec 9 Attribute Value
ALUMINUM/COPPER
