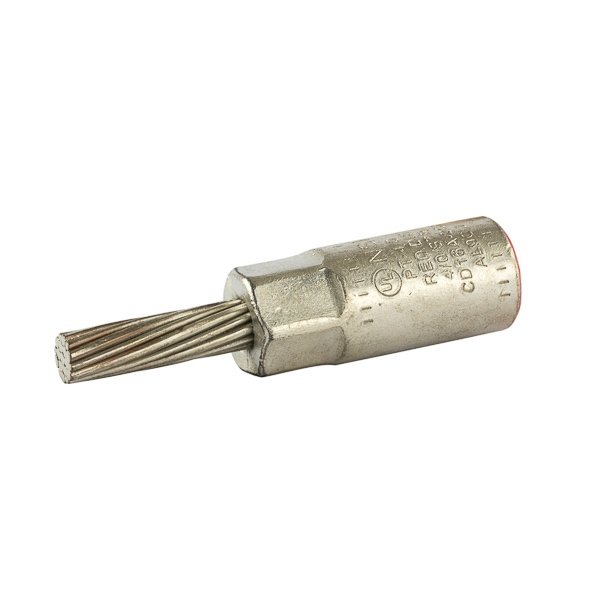

PT4/0 - Aluminum Pin Terminal Cu Pin 4/0 AWG
Description
Specifications
0.23lb
1.05mm
3.7mm
Facilitates termination of aluminum conductors
8601694
Terminate, Splice and Tap Power Connector Applications
NSI
USA
IN
Technical Bulletin
00662381033079
8601694
TERMINAL PIN 2/0 TO 4/0AWG 0.405IN AL
Facilitates termination of aluminum conductors
Stranded copper, tin plated pin providing high conductivity and corrosion resistance
Supplied with PVC insulating cover
Connector bores coated with oxide inhibitor
PT4/0 Bi-Metallic Pin Terminal With Plastisol Insulating Cover, 2/0 to 4/0 AWG Conductor, 0.405 in Dia x 1.464 in L Pin, Aluminum, White ; NSi Industries ; NSI ; PT40 ; 662381033079 ; Pin Terminals
NSi Industries
IN
3.7000
IN
1
0.2300
LB
1.0500
IN
PT4/0 ; PT40 ; 8601694 ; 662381033079 ; 66238103307 ; 00662381033079
Metallics
SCREWS, NUTS, BOLTS, WASHERS
Barrel Length
IN
2.05
Specifications
1-Conductor, 1-Pole, 0.547 in ID x 0.9 in OD Barrel
Temperature Rating
deg C
90
Type
Bi-Metallic
Voltage Rating
V AC
600
Color
White
Conductor Size
AWG
2/0 to 4/0
Conductor Type
Stranded Copper
Material
Aluminum
Overall Length
IN
3.52
Pin Diameter
IN
0.405
Pin Length
IN
1.464
Series
PT Series
