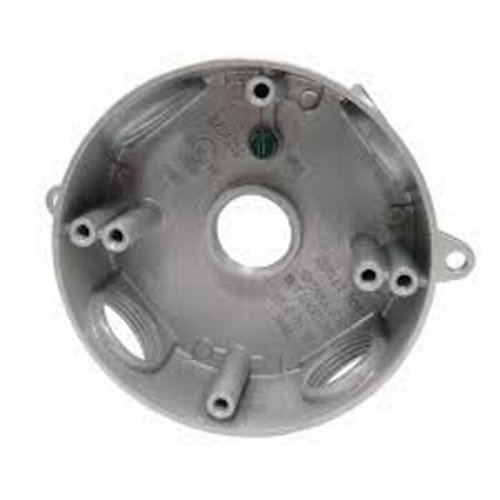

30316 - Weatherproof Outlet Box
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
7lb
AD Application
For wet location applications
AD Brand (Description)
Mulberry
AD Country
USA
AD Country Of Origin
US
AD Invoice Description
BOX RND WP DIE CAST AL 15.3CU-IN 5 5 KO
AD Item Features 01
Boxes and extensions 1-1/2 in deep
AD Item Features 02
All round boxes have five outlets extensions have four
AD Item Features 03
Boxes supplied with four close-up plugs and #10 green ground screw
AD Item Features 04
Extensions supplied with gasket, four close-up plugs, two stainless steel mounting screws and #10 green ground screw
AD Item Features 05
Meets all applicable federal specifications
AD Item Features 06
(4) side, (1) back outlets/location
AD Manufacturer (Description)
Mulberry Metal Products
AD Package Quantity
1
AD Package Weight
7.0000
AD Package Weight UOM
LB
Brand
Mulberry Metal Products
Category
CAST BOXES
Spec 1 Attribute
Cable Entry Size
Spec 1 Attribute Value
Knockout
Spec 10 Attribute
Mounting Type
Spec 10 Attribute Value
Threaded
Spec 11 Attribute
Number of Knockouts
Spec 11 Attribute Value
5
Spec 12 Attribute
Number of Outlets
Spec 12 Attribute Value
5
Spec 13 Attribute
Shape
Spec 13 Attribute Value
Round
Spec 2 Attribute
Capacity
Spec 2 Attribute UOM
cu-in
Spec 2 Attribute Value
15.3
Spec 3 Attribute
Color
Spec 3 Attribute Value
Gray
Spec 4 Attribute
Diameter
Spec 4 Attribute UOM
IN
Spec 4 Attribute Value
4
Spec 5 Attribute
Dimensions
Spec 5 Attribute Value
1-1/2 in D
Spec 6 Attribute
Finish
Spec 6 Attribute Value
Powder Coated
Spec 7 Attribute
Hub Size
Spec 7 Attribute UOM
IN
Spec 7 Attribute Value
2-Jan
Spec 8 Attribute
Material
Spec 8 Attribute Value
Die Cast Aluminum
Spec 9 Attribute
Mounting Orientation
Spec 9 Attribute Value
Vertical
