NSi Industries

0TC - Copper Extruded Lug -1/0-14 AWG

Category Small Terminals & Connectors

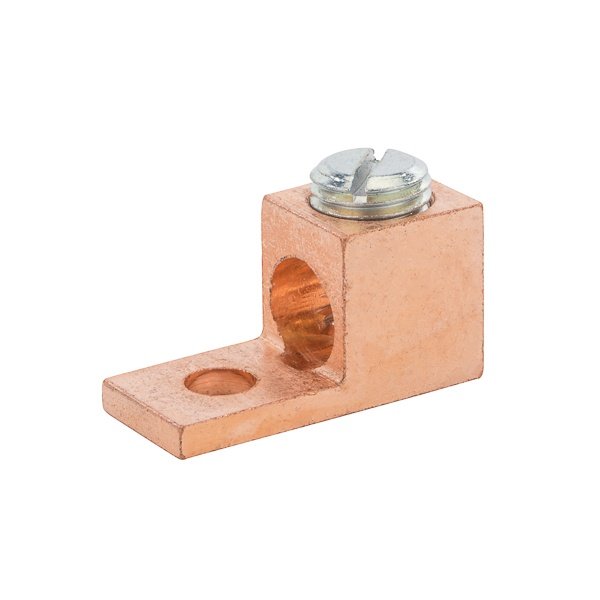

Picture of 0TC - Copper Extruded Lug -1/0-14 AWG Picture of 0TC - Copper Extruded Lug -1/0-14 AWG
Picture of 0TC - Copper Extruded Lug -1/0-14 AWG Picture of 0TC - Copper Extruded Lug -1/0-14 AWG
NSi Industries

0TC - Copper Extruded Lug -1/0-14 AWG

Item Code: 760168
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref 0TC

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Extruded Copper Lug 1/0 -14 AWG with 1/4" mounting bolt is a solid, one-piece copper connector made from extruded copper for superior mechanical strength and excellent performance. Steel Screw. Suitable for use with copper wire only. 600V (2000V max. per UL486B). UL 486A/B Listed Wire Connectors.

Specifications

Weight

0.06lb

Width

0.5mm

Length

1.2mm

AD All Features

Solid one-piece copper connector made from extruded copper for superior mechanical strength and excellent electrical performance

AD Application

For use with copper wire only and wire termination applications

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

LUG TERM COPPER 14 TO 1/0AWG 1/4IN

AD Item Features 01

Solid one-piece copper connector made from extruded copper for superior mechanical strength and excellent electrical performance

AD Item Features 02

Steel Screw

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

1.2000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0600

AD Package Weight UOM

LB

AD Package Width

0.5000

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Color

Spec 1 Attribute Value

Copper

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

90

Spec 11 Attribute

Tongue Size

Spec 11 Attribute Value

0.337 in L x 0.125 in THK

Spec 12 Attribute

Type

Spec 12 Attribute Value

Extruded Style Mechanical Single

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600

Spec 2 Attribute

Conductor Size

Spec 2 Attribute UOM

AWG

Spec 2 Attribute Value

14 to 1/0

Spec 3 Attribute

Conductor Type

Spec 3 Attribute Value

Copper

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

1.277 in L x 0.548 in W x 0.68 in H

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Copper

Spec 6 Attribute

Material

Spec 6 Attribute Value

Copper

Spec 7 Attribute

Series

Spec 7 Attribute Value

TC Series

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

1-Conductor, 1-Mounting Hole, 1-Pole, 1-Port, Slotted Wrench, 40 in-lb Torque

Spec 9 Attribute

Stud Size

Spec 9 Attribute UOM

IN

Spec 9 Attribute Value

4-Jan
