NSi Industries

2/0T - Dual Rated Lug 2/0-14

Category Small Terminals & Connectors

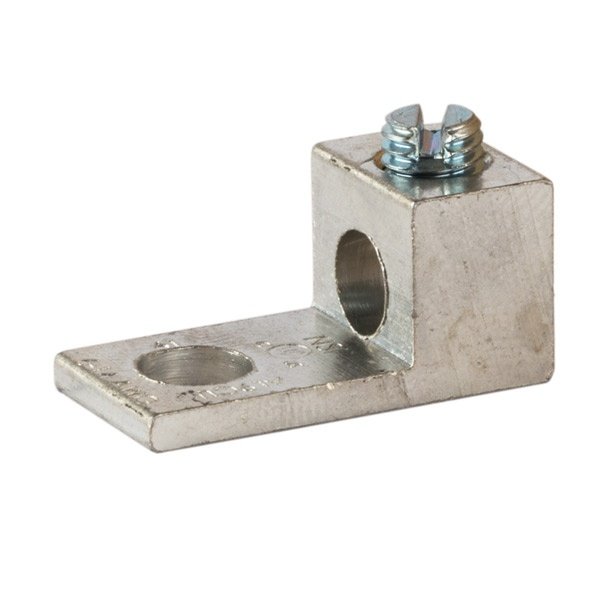

Picture of 2/0T - Dual Rated Lug 2/0-14 Picture of 2/0T - Dual Rated Lug 2/0-14
Picture of 2/0T - Dual Rated Lug 2/0-14 Picture of 2/0T - Dual Rated Lug 2/0-14
NSi Industries

2/0T - Dual Rated Lug 2/0-14

Item Code: 828147
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref 2/0T

Document
Document
Call for Availability
Add to Favorites
Compare

Description

1 Port Aluminum Lug 2/0-14 AWG Aluminum Single Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts, 90 degrees C. UL 486A/B Listed.

Specifications

Weight

0.04lb

Width

0.55mm

Length

1.35mm

AD All Features

Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy

AD Application

For wire termination

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

IN

AD Invoice Description

LUG DUAL RATED 14 TO 2/0AWG 1/4IN 1 AL

AD Item Features 01

Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy

AD Item Features 02

Electro-tin plated for low contact resistance

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

1.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0400

AD Package Weight UOM

LB

AD Package Width

0.5500

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

14 to 2/0

Spec 10 Attribute

Tongue Size

Spec 10 Attribute Value

0.85 in W x 0.19 in THK

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

1.47 in L x 0.63 in W x 0.79 in H

Spec 3 Attribute

Finish

Spec 3 Attribute Value

Electro-Tin Plated

Spec 4 Attribute

Material

Spec 4 Attribute Value

Aluminum

Spec 5 Attribute

Number of Bolt Holes

Spec 5 Attribute Value

1

Spec 6 Attribute

Series

Spec 6 Attribute Value

T Series

Spec 7 Attribute

Specifications

Spec 7 Attribute Value

1 Pole, 1 Conductor, 3/16 in Wrench, 120 in-lb Torque

Spec 8 Attribute

Stud Size

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

4-Jan

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

90
