NSi Industries

250T - Dual Rated Lug 250-6

Category Small Terminals & Connectors

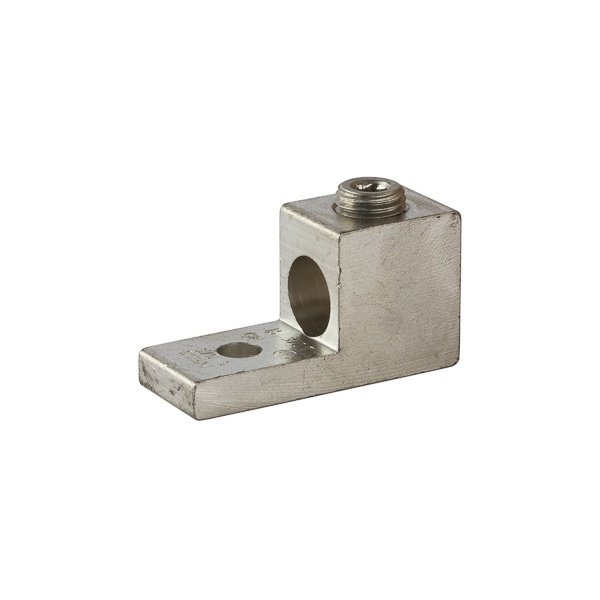

Picture of 250T - Dual Rated Lug 250-6 Picture of 250T - Dual Rated Lug 250-6
Picture of 250T - Dual Rated Lug 250-6 Picture of 250T - Dual Rated Lug 250-6
NSi Industries

250T - Dual Rated Lug 250-6

Item Code: 828149
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref 250T

Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

1 Port Aluminum Lug 250 MCM - 6 AWG Aluminum Single Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .

Specifications

Weight

0.11lb

Width

0.85mm

Length

1.95mm

Brand

NSi Industries

Category

LARGE TERMINALS & CONNECTORS

Conductor Size

6 AWG to 250 KCMIL

Dimensions

2 in L x 0.88 in W x 1.02 in H

Finish

Electro-Tin Plated

Material

Aluminum

Number of Bolt Holes

1

Series

T Series

Specifications

1 Pole, 1 Conductor, 5/16 in Wrench, 330 in-lb Torque

Stud Size

16-May in

Temperature Rating

90 deg C

Tongue Size

1.13 in W x 0.22 in THK

Voltage Rating

600 V AC
