NSi Industries

3/0T - Aluminum Dual-Rated Single Lug 3/0-6 AWG

Category Small Terminals & Connectors

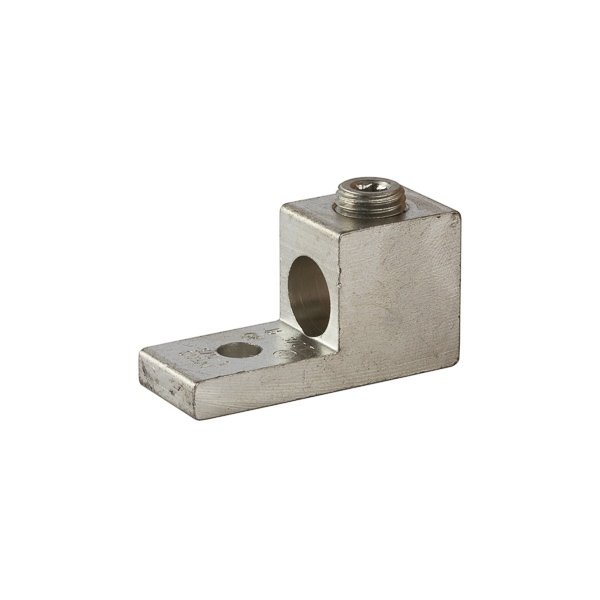

Picture of 3/0T - Aluminum Dual-Rated Single Lug 3/0-6 AWG Picture of 3/0T - Aluminum Dual-Rated Single Lug 3/0-6 AWG
Picture of 3/0T - Aluminum Dual-Rated Single Lug 3/0-6 AWG Picture of 3/0T - Aluminum Dual-Rated Single Lug 3/0-6 AWG
NSi Industries

3/0T - Aluminum Dual-Rated Single Lug 3/0-6 AWG

Item Code: 760715
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref 3/0T

Document
Call for Availability
Add to Favorites
Compare

Description

Aluminum Dual-Rated Single Lug 3/0-6 AWG with 1/4 Inch bolt size for use with copper or aluminum conductors. These Lugs are versatile and feature reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .

Specifications

Weight

0.06lb

Width

0.65mm

Length

1.8mm

AD All Features

Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy

AD Application

For wire termination

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

LUG DUAL RATED 6 TO 3/0AWG 1/4IN 1 AL

AD Item Features 01

Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy

AD Item Features 02

Electro-tin plated for low contact resistance

AD Item Features 03

Rated 600 V (2000V maximum per UL486B)

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

1.8000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0600

AD Package Weight UOM

LB

AD Package Width

0.6500

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

6 to 3/0

Spec 10 Attribute

Tongue Size

Spec 10 Attribute Value

0.85 in W x 0.145 in THK

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

1.875 in L x 0.7 in W x 0.89 in H

Spec 3 Attribute

Finish

Spec 3 Attribute Value

Electro-Tin Plated

Spec 4 Attribute

Material

Spec 4 Attribute Value

Aluminum

Spec 5 Attribute

Number of Bolt Holes

Spec 5 Attribute Value

1

Spec 6 Attribute

Series

Spec 6 Attribute Value

T Series

Spec 7 Attribute

Specifications

Spec 7 Attribute Value

1 Pole, 1 Conductor, 3/16 in Wrench, 250 in-lb Torque

Spec 8 Attribute

Stud Size

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

4-Jan

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

90
