3-250L2/L4 - Nema Panel Lug (3)250-6

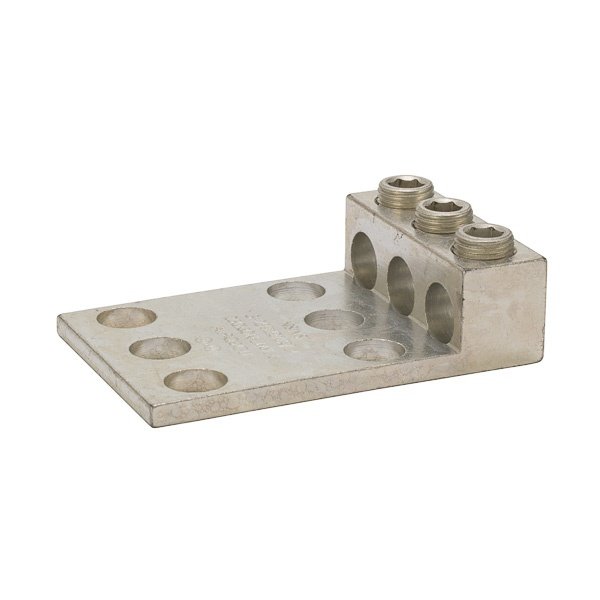

Picture of 3-250L2/L4 - Nema Panel Lug (3)250-6 Picture of 3-250L2/L4 - Nema Panel Lug (3)250-6
Picture of 3-250L2/L4 - Nema Panel Lug (3)250-6 Picture of 3-250L2/L4 - Nema Panel Lug (3)250-6

3-250L2/L4 - Nema Panel Lug (3)250-6

Item Code: 750345
Manufacturer NSI INDUSTRIES
Manufacturer Ref 3-250L2/L4
Call for Availability
Compare

Description

3 Port Panelboard Lug 250 MCM - 6 AWG Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".

Specifications

Weight

1.47lb

Width

2.5mm

Length

3.88mm

Bolt/Stud Size

16-Sep in

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Conductor Range

6 AWG to 250 KCMIL

Electrical Ratings

600 V AC

Finish

Aluminum

Height

1.02 in

Hex Size

16-May in

Hole Spacing

1/3/2004 in

Length

3.88 in

Material

Aluminum

Number of Ports

3

Series

L Series

Suitable For Use With

Copper and Aluminum Conductors

Type

Dual Rated

Width

2/1/2002 in
