NSi Industries

350T-2 - Step Panel Lug Two 350-6

Category Small Terminals & Connectors

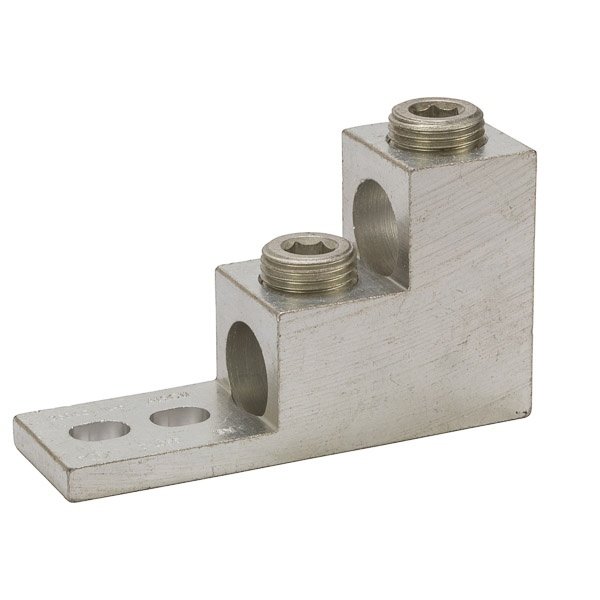

Picture of 350T-2 - Step Panel Lug Two 350-6 Picture of 350T-2 - Step Panel Lug Two 350-6
Picture of 350T-2 - Step Panel Lug Two 350-6 Picture of 350T-2 - Step Panel Lug Two 350-6
NSi Industries

350T-2 - Step Panel Lug Two 350-6

Item Code: 752207
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref 350T-2

Document
Call for Availability
Add to Favorites
Compare

Description

2 Port Stacked Lug 350 MCM - 6 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".

Specifications

Weight

0.24lb

Width

1.95mm

Length

3.45mm

AD All Features

Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector

AD Application

For use with copper or aluminum conductors, wire termination

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

LUG STEP PNL AL/COPPER 5/16IN 2 600VAC

AD Item Features 01

Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector

AD Item Features 02

Electro-tin plated for low contact resistance

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

3.4500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2400

AD Package Weight UOM

LB

AD Package Width

1.9500

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Conductor Size

Spec 1 Attribute Value

6 AWG to 350 kcmil

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

90

Spec 11 Attribute

Tongue Size

Spec 11 Attribute Value

1.56 in W x 0.25 in THK

Spec 12 Attribute

Type

Spec 12 Attribute Value

Stacked

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

ALUMINUM/COPPER

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

3.56 in L x 1.06 in W x 2 in H

Spec 4 Attribute

Finish

Spec 4 Attribute Value

Electro-Tin Plated

Spec 5 Attribute

Material

Spec 5 Attribute Value

Aluminum

Spec 6 Attribute

Number of Bolt Holes

Spec 6 Attribute Value

2

Spec 7 Attribute

Series

Spec 7 Attribute Value

T2

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

1 Pole, 2 Conductor, 0.33 x 0.43 in Hole Dia, 5/16 in Wrench, 400 in-lb Torque

Spec 9 Attribute

Stud Size

Spec 9 Attribute UOM

IN

Spec 9 Attribute Value

16-May
