NSi Industries

4-250L4 - Nema Panel Lug (4)250-6

Category Small Terminals & Connectors

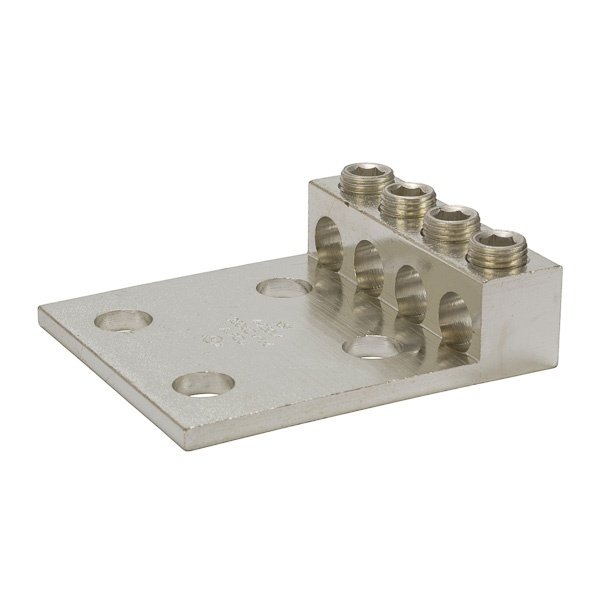

Picture of 4-250L4 - Nema Panel Lug (4)250-6 Picture of 4-250L4 - Nema Panel Lug (4)250-6
Picture of 4-250L4 - Nema Panel Lug (4)250-6 Picture of 4-250L4 - Nema Panel Lug (4)250-6
NSi Industries

4-250L4 - Nema Panel Lug (4)250-6

Item Code: 750876
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref 4-250L4

Document
Call for Availability
Add to Favorites
Compare

Description

4 Port Panelboard Lug 250 MCM - 6 AWG Large size set screw connectors with multiple mounting holes for a secure, turn-prevent connection. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. For use with copper or aluminum conductors. 600V (2000V max, per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.75".

Specifications

Weight

0.4lb

Width

3.25mm

Length

3.8mm

AD All Features

Large size set-screw connectors with multiple mounting, NEMA spaced holes for a secure, turn-prevent connection

AD Application

For wire termination

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

LUG PANELBOARD 6 AWG TO 250 KCMIL 9/16IN

AD Item Features 01

Large size set-screw connectors with multiple mounting, NEMA spaced holes for a secure, turn-prevent connection

AD Item Features 02

Tin plated for low contact resistance

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

3.8000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4000

AD Package Weight UOM

LB

AD Package Width

3.2500

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Bolt/Stud Size

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

16-Sep

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number of Ports

Spec 11 Attribute Value

4

Spec 12 Attribute

Series

Spec 12 Attribute Value

L4

Spec 13 Attribute

Suitable For Use With

Spec 13 Attribute Value

Copper or Aluminum Conductor

Spec 14 Attribute

Type

Spec 14 Attribute Value

Dual Rated

Spec 15 Attribute

Width

Spec 15 Attribute UOM

IN

Spec 15 Attribute Value

3.3

Spec 2 Attribute

Conductor Range

Spec 2 Attribute Value

6 AWG to 250 KCMIL

Spec 3 Attribute

Electrical Ratings

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

600

Spec 4 Attribute

Finish

Spec 4 Attribute Value

Tin Plated

Spec 5 Attribute

Height

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

1.02

Spec 6 Attribute

Hex Size

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

16-May

Spec 7 Attribute

Hole Spacing

Spec 7 Attribute UOM

IN

Spec 7 Attribute Value

1/3/2004

Spec 8 Attribute

Length

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

3.88

Spec 9 Attribute

Material

Spec 9 Attribute Value

Aluminum
