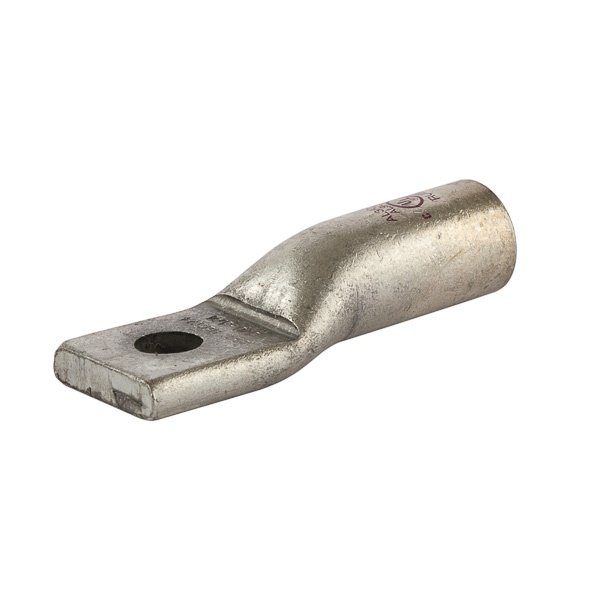

AL3/0-38 - Aluminum Compression Lug 3/0 AWG
Description
Purchasing Quantities
1
12
Specifications
0.89lb
1.03mm
3mm
Terminate, Splice and Tap Power Connector Applications
NSi Industries
USA
IN
LUG COMPRESSION 3/0AWG STRD AL/COPPER AL
Produced from high conductivity aluminum tubing
Electro tin plated for corrosion resistance
Color coded and marked with die index information
Pre-filled with oxide inhibitor and capped with color coded cap
Listed for 35 kV maximum when properly installed to cable manufactures specifications
NSi Industries
IN
3.0000
IN
1
0.8900
LB
1.0300
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Barrel Size
0.48 in ID x 0.759 in OD x 1.4016 in L
Stud Size
IN
8-Mar
Temperature Rating
deg C
90
Tongue Size
1.1181 in L x 1.02 in W x 0.2795 in THK
Type
1-Hole Dual Rated
Voltage Rating
V AC
600
Barrel Type
Standard
Color
Ruby
Conductor Size
AWG
Mar-00
Conductor Type
Stranded Aluminum/Copper
Material
Aluminum
Mounting Hole Size
IN
8-Mar
Overall Length
IN
3
Series
AL Series
