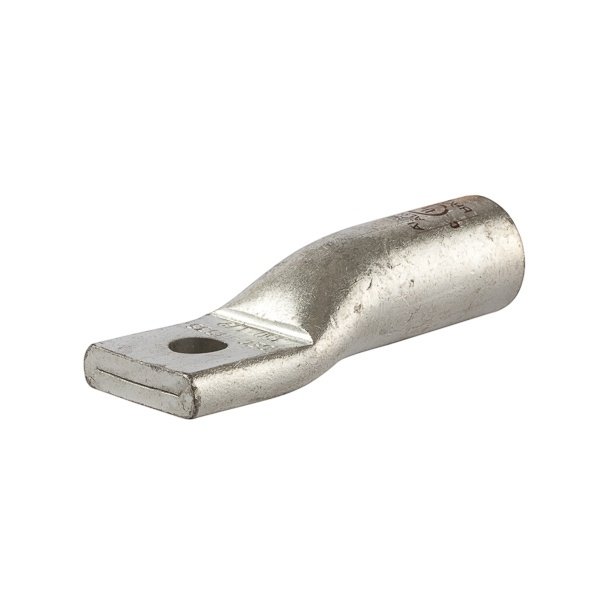

AL350-48 - Al350-48 #350 Aluminum Compression Lug
Description
Specifications
1.62lb
1.52mm
4.43mm
For terminate, splice and tap power connectors
NSi Industries
USA
IN
LUG COMPRESSION 350KCMIL AL/COPPER STRD
Produced from high conductivity aluminum tubing
Electro tin plated for corrosion resistance
Color coded and marked with die index information
Pre-filled with oxide inhibitor and capped with color coded cap
Listed for 35 kV maximum when properly installed to cable manufactures specifications
Marked with die index and color coded for easy reference
NSi Industries
IN
4.4300
IN
1
1.6200
LB
1.5200
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Barrel Size
0.72 in ID x 1.11 in OD x 1.902 in L
Stud Size
IN
2-Jan
Temperature Rating
deg C
90
Tongue Size
1.5 in L x 1.51 in W x 0.39 in THK
Type
1-Hole Dual Rated
Voltage Rating
V
600
Barrel Type
Standard
Color
Brown
Conductor Size
kcmil
350
Conductor Type
Aluminum/Copper Stranded
Material
Aluminum
Mounting Hole Size
IN
2-Jan
Overall Length
IN
4.24
Series
AL Series
