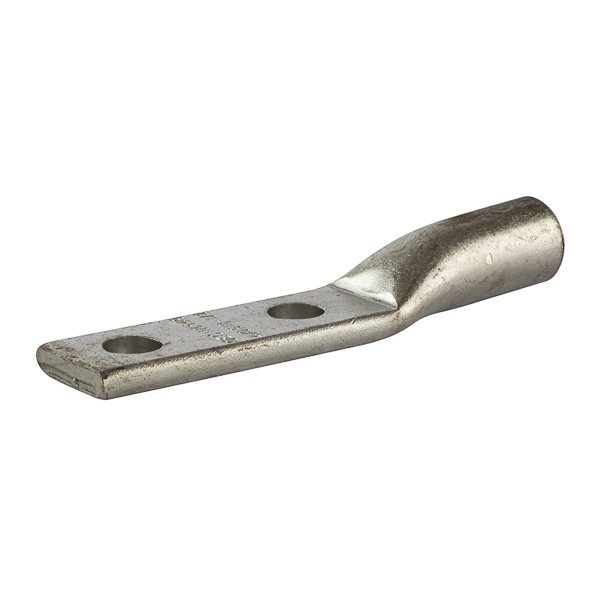

AL4/0N - Al4/0N #4/0 Aluminum Compression Lug
Description
Specifications
2.16lb
1.15mm
5.25mm
Terminate, Splice and Tap Power Connector Applications
NSi Industries
USA
IN
LUG COMPRESSION 4/0AWG STRD AL/COPPER AL
Produced from high conductivity aluminum tubing
Electro tin plated for corrosion resistance
Color coded and marked with die index information
Pre-filled with oxide inhibitor and capped with color coded cap
Listed for 35 kV maximum when properly installed to cable manufactures specifications
NSi Industries
IN
5.2500
IN
1
2.1600
LB
1.1500
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Barrel Size
0.55 in ID x 0.84 in OD x 1.402 in L
Specifications
1-3/4 in hole spacing
Stud Size
IN
2-Jan
Temperature Rating
deg C
90
Tongue Size
3.118 in L x 1.14 in W x 0.287 in THK
Type
2-Hole Dual Rated
Voltage Rating
V AC
600
Barrel Type
Standard
Color
White
Conductor Size
AWG
Apr-00
Conductor Type
Stranded Aluminum/Copper
Material
Aluminum
Mounting Hole Size
IN
2-Jan
Overall Length
IN
5.24
Series
AL-N Series
