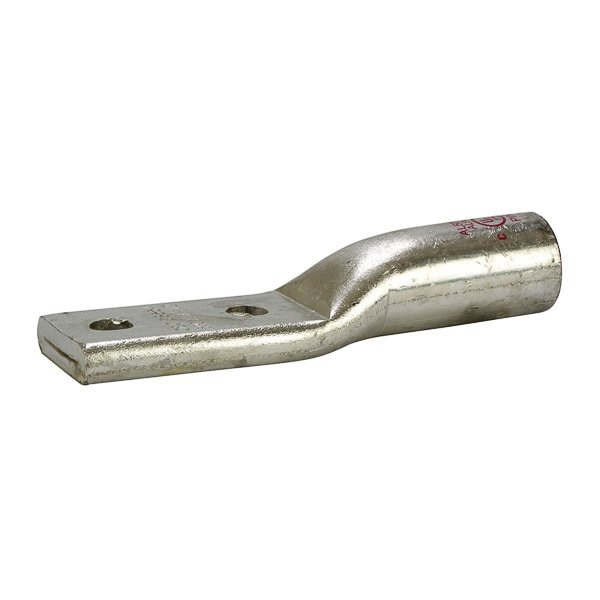

AL500N - Aluminum Compression Lug 500 MCM
Item Code: 749042
Category
Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref AL500N
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
3.12lb
Width
1.79mm
Length
6.5mm
AD All Features
Electro-tin plated for corrosion resistance
AD Application
For splice, tap power connectors and terminate
AD Brand (Description)
NSi Industries
AD Country
USA
AD Country Of Origin
IN
AD Invoice Description
LUG COMPRESSION 500KCMIL STRD 1/2IN AL
AD Item Features 01
Electro-tin plated for corrosion resistance
AD Item Features 02
Pre-filled with oxide inhibitor and capped with color coded cap
AD Item Features 03
Listed for 35KV maximum when properly installed to cable manufacturers specifications
AD Manufacturer (Description)
NSi Industries
AD Package Height UOM
IN
AD Package Length
6.5000
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
3.1200
AD Package Weight UOM
LB
AD Package Width
1.7900
AD Package Width UOM
IN
Brand
NSi Industries
Category
SMALL TERMINALS & CONNECTORS
Spec 1 Attribute
Barrel Size
Spec 1 Attribute Value
0.84 in ID x 1.32 in OD
Spec 10 Attribute
Stud Size
Spec 10 Attribute UOM
IN
Spec 10 Attribute Value
2-Jan
Spec 11 Attribute
Temperature Rating
Spec 11 Attribute UOM
deg C
Spec 11 Attribute Value
90
Spec 12 Attribute
Tongue Size
Spec 12 Attribute Value
3.118 in L x 1.78 in W x 0.468 in THK
Spec 13 Attribute
Type
Spec 13 Attribute Value
2-Hole
Spec 14 Attribute
Voltage Rating
Spec 14 Attribute UOM
V AC
Spec 14 Attribute Value
600
Spec 2 Attribute
Barrel Type
Spec 2 Attribute Value
Standard
Spec 3 Attribute
Color
Spec 3 Attribute Value
Pink
Spec 4 Attribute
Conductor Size
Spec 4 Attribute UOM
kcmil
Spec 4 Attribute Value
500
Spec 5 Attribute
Conductor Type
Spec 5 Attribute Value
Stranded
Spec 6 Attribute
Dimensions
Spec 6 Attribute Value
1.78 in W
Spec 7 Attribute
Material
Spec 7 Attribute Value
Aluminum
Spec 8 Attribute
Mounting Hole Size
Spec 8 Attribute UOM
IN
Spec 8 Attribute Value
2-Jan
Spec 9 Attribute
Overall Length
Spec 9 Attribute UOM
IN
Spec 9 Attribute Value
6/1/2002
