NSi Industries

ASC2/0T - Aluminum Compression Splice 2/0 AWG

Category Splices, Closures, Trays

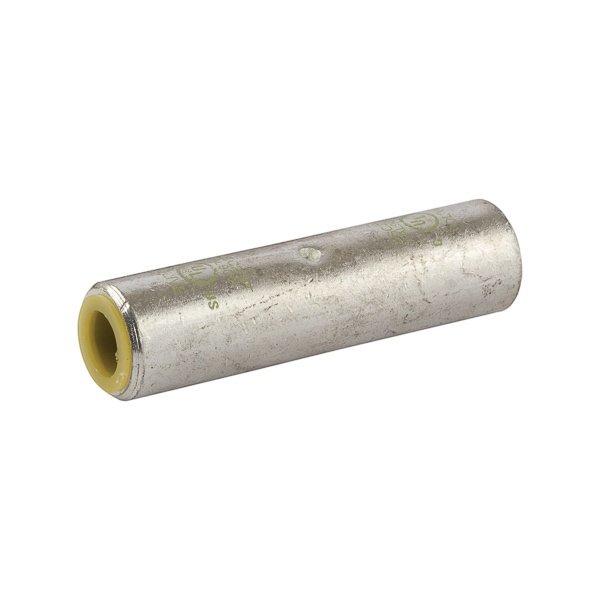

Picture of ASC2/0T - Aluminum Compression Splice 2/0 AWG Picture of ASC2/0T - Aluminum Compression Splice 2/0 AWG
Picture of ASC2/0T - Aluminum Compression Splice 2/0 AWG Picture of ASC2/0T - Aluminum Compression Splice 2/0 AWG
NSi Industries

ASC2/0T - Aluminum Compression Splice 2/0 AWG

Item Code: 828616
Category Splices, Closures, Trays
Manufacturer NSI INDUSTRIES
Manufacturer Ref ASC2/0T

Document
Call for Availability
Add to Favorites
Compare

Description

Dual Rated Aluminum Splice 2/0 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.

Specifications

Weight

0.66lb

Width

0.69mm

Length

2.63mm

AD Application

Terminate, Splice and Tap Power Connector Applications

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

IN

AD Invoice Description

SPLICE COMPRESSION 2/0AWG STRD AL/COPPER

AD Item Features 01

Produced from high conductivity aluminum tubing

AD Item Features 02

Center stop assures proper cable installation

AD Item Features 03

Electro tin plated for corrosion resistance

AD Item Features 04

Color coded and marked with die index information

AD Item Features 05

Pre-filled with oxide inhibitor and capped with color coded cap

AD Item Features 06

Listed for 35 kV maximum when properly installed to cable manufactures specifications

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

2.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.6600

AD Package Weight UOM

LB

AD Package Width

0.6900

AD Package Width UOM

IN

Brand

NSi Industries

Category

SPLICES, CLOSURES, TRAYS

Spec 1 Attribute

Color

Spec 1 Attribute Value

Olive

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

90

Spec 11 Attribute

Type

Spec 11 Attribute Value

Dual Rated Standard Barrel

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 2 Attribute

Conductor Size

Spec 2 Attribute UOM

AWG

Spec 2 Attribute Value

Feb-00

Spec 3 Attribute

Conductor Type

Spec 3 Attribute Value

Stranded Aluminum/Copper

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

0.44 in ID x 0.689 in OD

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Tin Plated

Spec 6 Attribute

Length

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

2.62

Spec 7 Attribute

Material

Spec 7 Attribute Value

Aluminum

Spec 8 Attribute

Series

Spec 8 Attribute Value

ASC-T Series

Spec 9 Attribute

Specifications

Spec 9 Attribute Value

2-Conductor, 1-Pole
