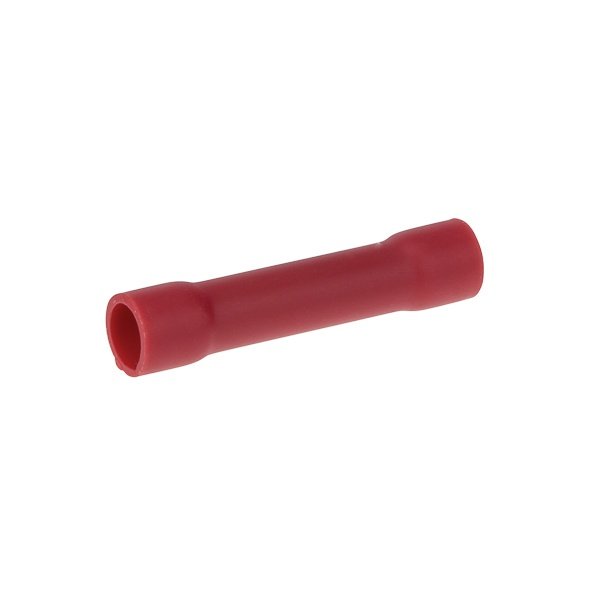

B22-V-S - 22-18 Vinyl Butt Splice
Item Code: 828963
Category
Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref B22-V-S
Minimum order quantity 25
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Purchasing Quantities
EACH
1
BOX
25
Specifications
Weight
0.08lb
Width
0.04mm
Length
1.02mm
AD All Features
Constructed from electro tin plated copper tubbing
AD Application
Splicing Wire Applications
AD Brand (Description)
NSi Industries
AD Country
USA
AD Country Of Origin
TW
AD Invoice Description
SPLICE BUTT 22 TO 18AWG 1.024IN SMLS R
AD Item Features 01
Constructed from electro tin plated copper tubbing
AD Item Features 02
Center stop provides equal insertion of wires
AD Item Features 03
Stripped wires are inserted from each end and "butt" in the center
AD Item Features 04
A crimp at each end secures the connection
AD Manufacturer (Description)
NSi Industries
AD Package Height UOM
IN
AD Package Length
1.0200
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
0.0800
AD Package Weight UOM
LB
AD Package Width
0.0400
AD Package Width UOM
IN
Brand
NSi Industries
Category
SMALL TERMINALS & CONNECTORS
Spec 1 Attribute
Barrel Size
Spec 1 Attribute Value
0.063 in ID x 0.591 in L
Spec 10 Attribute
Specifications
Spec 10 Attribute Value
Vinyl Insulated, 2-Terminal
Spec 11 Attribute
Temperature Rating
Spec 11 Attribute UOM
deg C
Spec 11 Attribute Value
75
Spec 12 Attribute
Voltage Rating
Spec 12 Attribute UOM
V
Spec 12 Attribute Value
300
Spec 2 Attribute
Barrel Type
Spec 2 Attribute Value
Seamless
Spec 3 Attribute
Color
Spec 3 Attribute Value
Red
Spec 4 Attribute
Conductor Size
Spec 4 Attribute UOM
AWG
Spec 4 Attribute Value
22 To 18
Spec 5 Attribute
Dimensions
Spec 5 Attribute Value
0.161 in Dia
Spec 6 Attribute
Finish
Spec 6 Attribute Value
Electro-plated Tin
Spec 7 Attribute
Length
Spec 7 Attribute UOM
IN
Spec 7 Attribute Value
1.024
Spec 8 Attribute
Material
Spec 8 Attribute Value
Copper
Spec 9 Attribute
Series
Spec 9 Attribute Value
B Series
