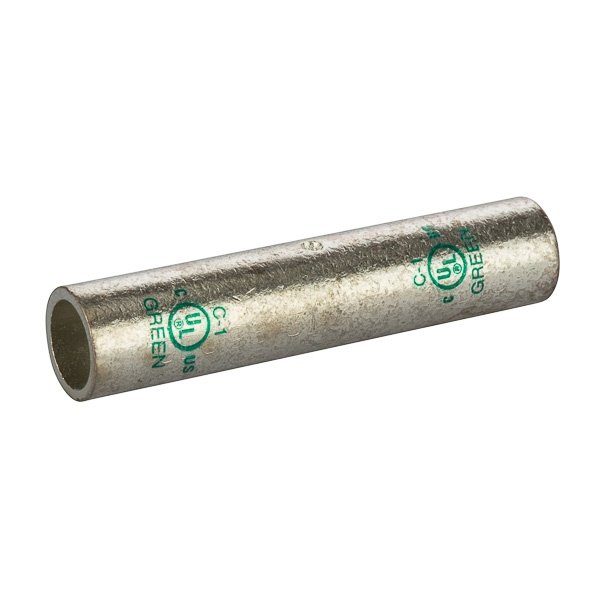

C-1 - Copper Compression Splice Long 1 AWG
Description
Specifications
5lb
0.36mm
2.2mm
For splice, tap power connectors and terminate
NSi Industries
USA
IN
SPLICE COMPRESSION STRD COPPER 1AWG LONG
Produced from high conductivity copper tubing
Serrations indicate proper crimp locations
Tin plated to provide corrosion resistance
Marked with die index and color coded for easy reference
Suitable for use at voltages up to 35 kV provided connector is properly taped
5 kV is the maximum voltage in all bare splices
For applications greater than 2000 V, consult the cable manufacturer for voltage stress relief instructions
Listed for 35 kV maximum when properly installed
NSi Industries
IN
2.2000
IN
1
5.0000
LB
0.3600
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Barrel Size
0.359 in ID x 0.469 in OD
Temperature Rating
deg C
90
Type
Dual Rated
Voltage Rating
V AC
600
Barrel Type
Long
Color
Green
Conductor Size
AWG
1
Conductor Type
Stranded Copper
Finish
Tin Plated
Length
IN
2.2
Material
Copper
Specifications
1 Pole, 2 Conductor
