NSi Industries

F22-250-3V-S - 22-18 Fem. Disc .250X.032

Category Small Terminals & Connectors

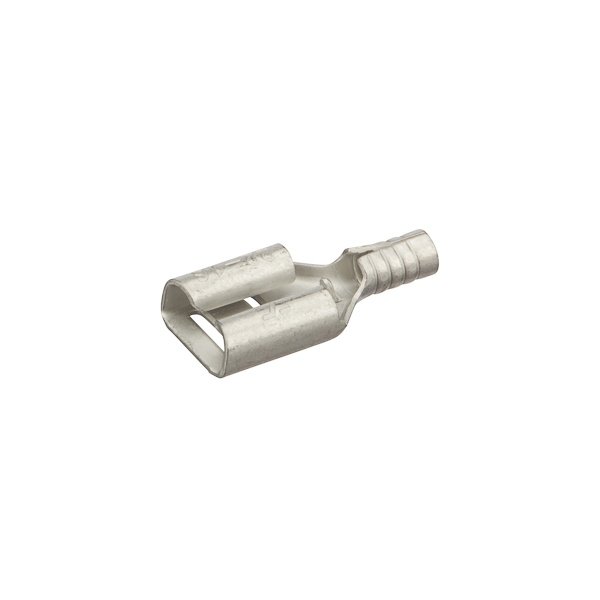

Picture of F22-250-3V-S - 22-18 Fem. Disc .250X.032 Picture of F22-250-3V-S - 22-18 Fem. Disc .250X.032
Picture of F22-250-3V-S - 22-18 Fem. Disc .250X.032 Picture of F22-250-3V-S - 22-18 Fem. Disc .250X.032
NSi Industries

F22-250-3V-S - 22-18 Fem. Disc .250X.032

Item Code: 829007
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref F22-250-3V-S
Minimum order quantity 25

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

22-18 AWG Vinyl Insulated Female Disconnect with 0.250 Stud - 25 Count Vinyl Insulated Female Disconnects are entirely covered in an insulating vinyl. Electro tin plated, vinyl (PVC). 300V, 75 degrees C. FEATURES: STYLE: Female Disconnect MATERIAL: Vinyl QUANTITY: 25 Count WIRE SIZE: 22-18 STUD SIZE: 0.250 BRAND EQUIVALENT: Morris 01314 Ilsco 45100-B10 Ideal 83-9571 Penn Union FR4A250

Specifications

Weight

0.07lb

Width

0.26mm

Length

0.83mm

AD All Features

Insulated female disconnects leave turned up edges for increased retention, safety and reliability

AD Application

Wire Termination Applications

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

TW

AD Invoice Description

DISCONNECT FEM FLAG 22TO18AWG COPPER R

AD Item Features 01

Insulated female disconnects leave turned up edges for increased retention, safety and reliability

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

0.8300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0700

AD Package Weight UOM

LB

AD Package Width

0.2600

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Type

Spec 1 Attribute Value

Butted Seam

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

75

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

300

Spec 2 Attribute

Color

Spec 2 Attribute Value

Red

Spec 3 Attribute

Conductor Size

Spec 3 Attribute UOM

AWG

Spec 3 Attribute Value

22 To 18

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

0.826 in L x 0.259 in W

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Electro-plated Tin

Spec 6 Attribute

Material

Spec 6 Attribute Value

Copper

Spec 7 Attribute

Series

Spec 7 Attribute Value

F-V Series

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

1-Terminal, Vinyl Insulated, 1/4 in Stud Size

Spec 9 Attribute

Tab Size

Spec 9 Attribute Value

0.25 in W x 0.032 in THK
