NSi Industries

GL814 - Copper Red Compression Short Lug, 8 AWG, 1/4” Mount

Category Small Terminals & Connectors

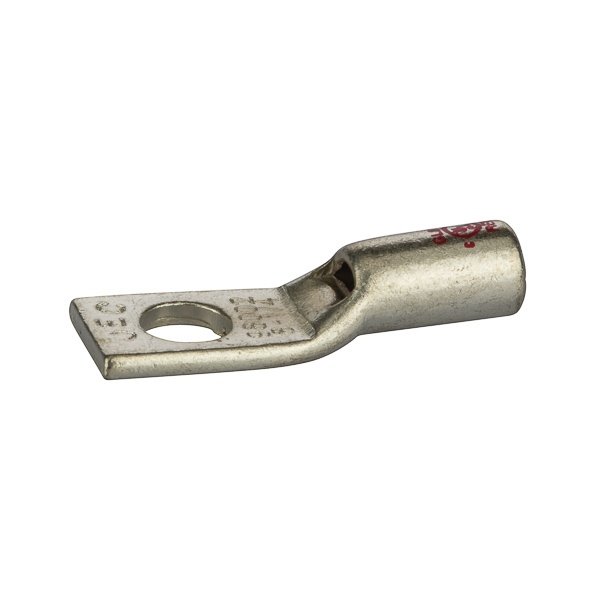

Picture of GL814 - Copper Red Compression Short Lug, 8 AWG, 1/4” Mount Picture of GL814 - Copper Red Compression Short Lug, 8 AWG, 1/4” Mount
Picture of GL814 - Copper Red Compression Short Lug, 8 AWG, 1/4” Mount Picture of GL814 - Copper Red Compression Short Lug, 8 AWG, 1/4” Mount
NSi Industries

GL814 - Copper Red Compression Short Lug, 8 AWG, 1/4” Mount

Item Code: 828701
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref GL814

Document
Call for Availability
Add to Favorites
Compare

Description

The NSI GL814 Copper Compression Short Lug features a standard installation hole, sized for 1/4” mounting bolts, and a chamfered port to terminate an 8 AWG conductor. Connectors are made from tin-plated copper for improved conductivity and corrosion resistance. The legible die index and red color-coding make them easy to identify and they install easily with just a crimp tool. The closed barrel design is simple, reliably functional and sealed against moisture or contamination. When bonded, it creates a homogenous connection between the connector and conductor, forming a vibration-resistant, mechanically strong unit. Use for many applications including secondary power distribution in buildings, power plants, industrial applications or with electrical equipment.

Specifications

Weight

1.5lb

Width

0.42mm

Length

1.2mm

AD Application

Terminate, Splice and Tap Power Connector Applications

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

IN

AD Invoice Description

LUG COMPRESSION 8AWG STRD 1/4IN COPPER R

AD Item Features 01

Produced from high conductivity copper tubing

AD Item Features 02

Peep hole allows easy inspection of the termination to assure complete cable insertion

AD Item Features 03

Tin plated to provide corrosion and low contact resistance

AD Item Features 04

Marked with die index and color coded

AD Item Features 05

Listed for 35 kV maximum when properly installed

AD Item Features 06

For applications greater than 2000 V, install to cable manufacturer voltage stress relief instructions

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

1.2000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.5000

AD Package Weight UOM

LB

AD Package Width

0.4200

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Size

Spec 1 Attribute Value

0.17 in ID x 0.27 in OD x 0.44 in L

Spec 10 Attribute

Stud Size

Spec 10 Attribute UOM

IN

Spec 10 Attribute Value

4-Jan

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

90

Spec 12 Attribute

Tongue Size

Spec 12 Attribute Value

0.59 in L x 0.42 in W x 0.08 in THK

Spec 13 Attribute

Type

Spec 13 Attribute Value

1-Hole

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 2 Attribute

Barrel Type

Spec 2 Attribute Value

Short

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red

Spec 4 Attribute

Conductor Size

Spec 4 Attribute UOM

AWG

Spec 4 Attribute Value

8

Spec 5 Attribute

Conductor Type

Spec 5 Attribute Value

Stranded

Spec 6 Attribute

Material

Spec 6 Attribute Value

Copper

Spec 7 Attribute

Mounting Hole Size

Spec 7 Attribute UOM

IN

Spec 7 Attribute Value

4-Jan

Spec 8 Attribute

Overall Length

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

1.2

Spec 9 Attribute

Series

Spec 9 Attribute Value

GL Series
