NSi Industries

GLA-4 - Aluminum Lay In Connector for 4-14 AWG

Category Small Terminals & Connectors

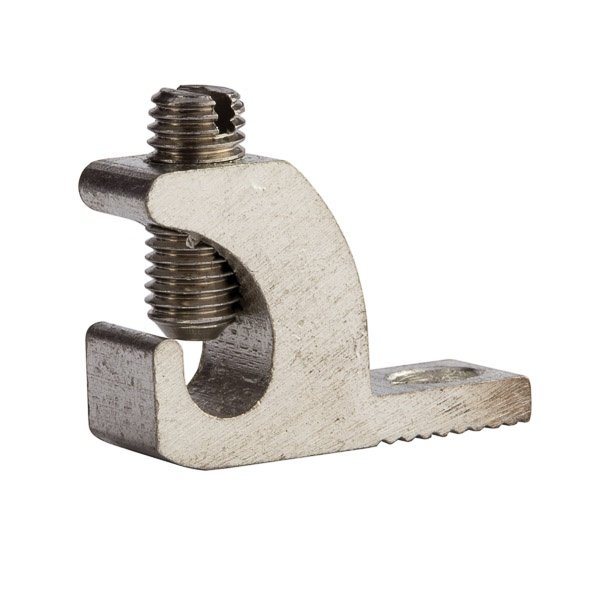

Picture of GLA-4 - Aluminum Lay In Connector for 4-14 AWG Picture of GLA-4 - Aluminum Lay In Connector for 4-14 AWG
Picture of GLA-4 - Aluminum Lay In Connector for 4-14 AWG Picture of GLA-4 - Aluminum Lay In Connector for 4-14 AWG
NSi Industries

GLA-4 - Aluminum Lay In Connector for 4-14 AWG

Item Code: 750766
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref GLA-4

Document
Call for Availability
Add to Favorites
Compare

Description

Lay In Connector 4 - 14 AWG offers the ultimate in flexibility. Excellent for grounding and continuous loop applications. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.

Specifications

Weight

0.03lb

Width

0.85mm

Length

1mm

AD All Features

Lay-in connectors offer the ultimate in flexibility

AD Application

For grounding and continuous loop applications and wire termination

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

IN

AD Invoice Description

LUG MECH TERM AL/COPPER 14 TO 4AWG 1 STR

AD Item Features 01

Lay-in connectors offer the ultimate in flexibility

AD Item Features 02

Electro-tin plated for low contact resistance and stainless steel screw

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

1.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0300

AD Package Weight UOM

LB

AD Package Width

0.8500

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

14 to 4

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

90

Spec 11 Attribute

Tongue Size

Spec 11 Attribute Value

0.19 in L x 0.375 in W x 0.15 in THK

Spec 12 Attribute

Tongue Type

Spec 12 Attribute Value

Straight

Spec 13 Attribute

Type

Spec 13 Attribute Value

Dual Rated Lay-In

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

ALUMINUM/COPPER

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1.07 in L x 0.38 in W x 0.75 in H

Spec 4 Attribute

Finish

Spec 4 Attribute Value

Electro-Tin Plated

Spec 5 Attribute

Material

Spec 5 Attribute Value

Aluminum

Spec 6 Attribute

Number of Bolt Holes

Spec 6 Attribute Value

1

Spec 7 Attribute

Series

Spec 7 Attribute Value

GLA

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

1 Pole, 1 Conductor

Spec 9 Attribute

Stud Size

Spec 9 Attribute UOM

IN

Spec 9 Attribute Value

0.187
