NSi Industries

GP-250WC - Aluminum Tap Connector for 250 MCM with Cover

Category Small Terminals & Connectors

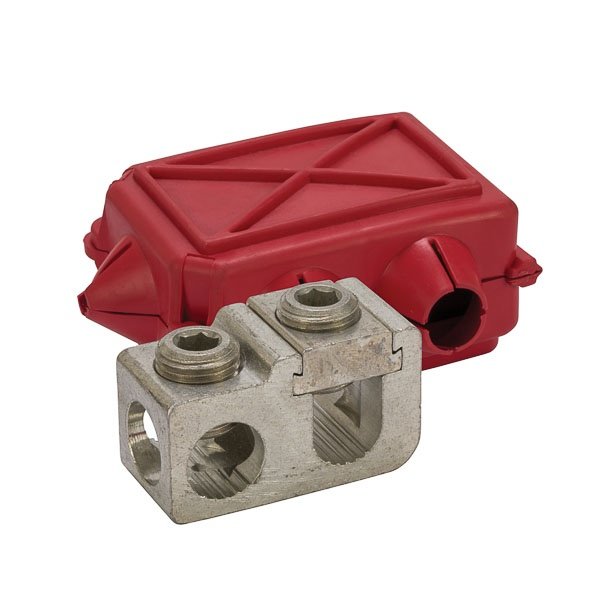

Picture of GP-250WC - Aluminum Tap Connector for 250 MCM with Cover Picture of GP-250WC - Aluminum Tap Connector for 250 MCM with Cover
Picture of GP-250WC - Aluminum Tap Connector for 250 MCM with Cover Picture of GP-250WC - Aluminum Tap Connector for 250 MCM with Cover
NSi Industries

GP-250WC - Aluminum Tap Connector for 250 MCM with Cover

Item Code: 750594
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref GP-250WC

Document
Call for Availability
Add to Favorites
Compare

Description

Aluminum Tap Connector with a 250 MCM - 1/0 AWG Main & 250-6 Tap is excellent for tapping off main conductor without cutting due to lay-in feature. Perpendicular tap allows for parallel or "T" tap configuration. Flexible red cover allows for either parallel or "T" tap wire entry. Secure snap cover eliminates need for taping. Electro-tin plated for low contact resistance. Rated 600V. Temperature rating 90 degrees C.

Specifications

Weight

0.28lb

Width

2.85mm

Length

6.85mm

AD All Features

Excellent for tapping of main conductor due to lay-in feature

AD Application

For wire termination

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

CONNECTOR PRL TAP AL/COPPER 6AWG 600VAC

AD Item Features 01

Excellent for tapping of main conductor due to lay-in feature

AD Item Features 02

Flexible cover allows for either parallel or T tap wire entry

AD Item Features 03

Secure snap cover eliminates need for taping

AD Item Features 04

Electro-tin plated for low contact resistance

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

6.8500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2800

AD Package Weight UOM

LB

AD Package Width

2.8500

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Conductor Type

Spec 1 Attribute Value

ALUMINUM/COPPER

Spec 10 Attribute

Type

Spec 10 Attribute Value

Dual Rated

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

3.44 in L x 3.18 in W x 1.63 in H

Spec 3 Attribute

Finish

Spec 3 Attribute Value

Electro-Tin Plated

Spec 4 Attribute

Material

Spec 4 Attribute Value

Aluminum

Spec 5 Attribute

Maximum Run/Tap

Spec 5 Attribute UOM

kcmil

Spec 5 Attribute Value

250

Spec 6 Attribute

Minimum Run/Tap

Spec 6 Attribute UOM

AWG

Spec 6 Attribute Value

6

Spec 7 Attribute

Series

Spec 7 Attribute Value

GP Series

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

1 Pole, 2 Conductor, 1/0 AWG to 250 kcmil Wire

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

90
