NSI

HSC-195 - Heat Shrink End Cap 195

Category Tape, Markers, Soldering & Insulating Materials

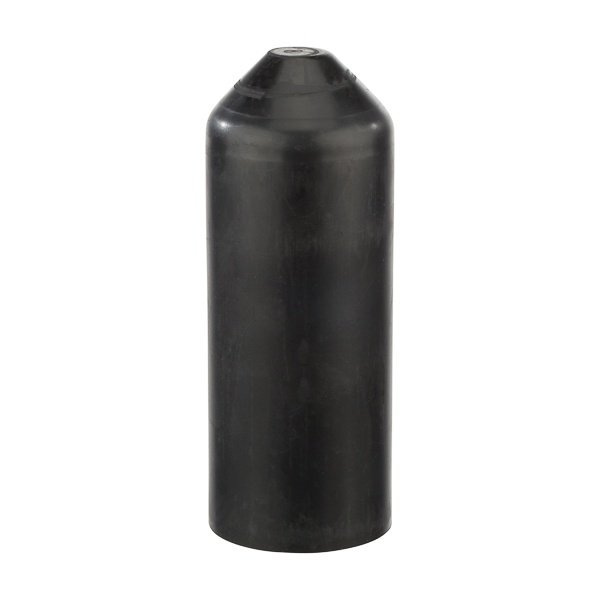

Picture of HSC-195 - Heat Shrink End Cap 195 Picture of HSC-195 - Heat Shrink End Cap 195
Picture of HSC-195 - Heat Shrink End Cap 195 Picture of HSC-195 - Heat Shrink End Cap 195
NSI

HSC-195 - Heat Shrink End Cap 195

Item Code: 1026435
Category Tape, Markers, Soldering & Insulating Materials
Manufacturer NSI INDUSTRIES
Manufacturer Ref HSC-195

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Easy-Splice Heat Shrinkable End Cap 750 - 1500 MCM These caps replace greases, tapes, epoxy, encapsulation, or dips. In most sizes, installation may be accomplished in less than one minute. Heat-shrinkable end caps provide for efficient and positive cable end sealing. Made of thermally stabilized polyolefin, the interior of the HSC is coated with a meltable sealant to assure a watertight seal, complete insulation, abrasion and corrosion resistance. Seals may be affected over lead, steel, aluminum, copper and all standard plastic and elastomeric insulating materials and conduit. HSC end sealing caps are qualified to ANSI C119.1-1986 and rated to ICEA electrical withstand test for 1,000 volts. HSC end sealing caps can be used as a live seal for cables carrying up to 1,000 volts. They can also be used as end seals for storing and pulling de-energized cable.

Specifications

Weight

0.19

Width

1.95

Length

6.25

AD Alternative Part Number

9870796

AD Application

For efficient and positive cable end sealing

AD Brand (Description)

NSI

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Catalog

AD Document Caption 2

Specification Sheet

AD Gtin

00662381014672

AD IDEA Index ID

9870796

AD Invoice Description

CAP END SHRINK HEAT 1000VAC 1.95IN BK

AD Item Features 01

These caps replace greases, tapes, epoxy, encapsulation or dips

AD Item Features 02

Heat shrink end caps provide for efficient and positive cable end sealing

AD Item Features 03

Made of thermally stabilized polyolefin, the interior of the HSC is coated with a meltable sealant to assure a watertight seal, complete insulation, abrasion and corrosion resistance

AD Item Features 04

Seals may be affected over lead, steel, aluminum, copper and all standard plastic and elastomeric insulating materials and conduit

AD Item Features 05

HSC end sealing caps can be used as a live seal for cables carrying up to 1000 V

AD Item Features 06

They can also be used as end seals for storing and pulling de-energized cable

AD Item Features 07

In most sizes, installation may be accomplished in less than 1 min

AD Keywords

EASY-SPLICE HSC-195 Round Heat Shrink End Cap, 1 kV AC, 1.95 in ID Expanded, 1.05 in ID Recovered, Polyolefin ; NSi Industries ; NSI ; HSC195 ; 662381014672 ; Shrink-On Tubing Caps

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

6.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.1900

AD Package Weight UOM

LB

AD Package Width

1.9500

AD Package Width UOM

IN

AD Part Number Keywords

HSC-195 ; HSC195 ; 9870796 ; 662381014672 ; 66238101467 ; 00662381014672

Brand

NSi Industries

Category

TAPE, MARKERS, SOLDERING & INSULATING MATERIALS

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black

Spec 2 Attribute

Inner Diameter Expanded

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

1.95

Spec 3 Attribute

Inner Diameter Recovered

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

1.05

Spec 4 Attribute

Material

Spec 4 Attribute Value

Polyolefin

Spec 5 Attribute

Series

Spec 5 Attribute Value

HSC Series

Spec 6 Attribute

Temperature Rating

Spec 6 Attribute UOM

deg C

Spec 6 Attribute Value

121 to 135

Spec 7 Attribute

Type

Spec 7 Attribute Value

Round

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

kV AC

Spec 8 Attribute Value

1
