NSi Industries

IPCS5040 - Insulation Piercing Connector 500-4/0 AWG

Category Small Terminals & Connectors

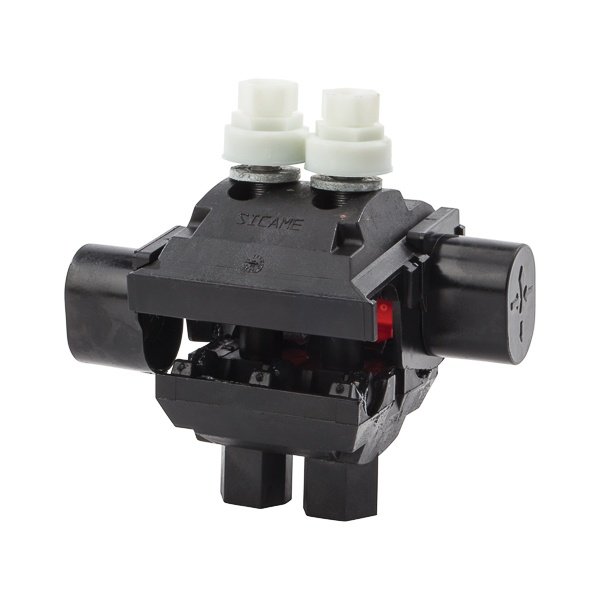

Picture of IPCS5040 - Insulation Piercing Connector 500-4/0 AWG Picture of IPCS5040 - Insulation Piercing Connector 500-4/0 AWG
Picture of IPCS5040 - Insulation Piercing Connector 500-4/0 AWG Picture of IPCS5040 - Insulation Piercing Connector 500-4/0 AWG
NSi Industries

IPCS5040 - Insulation Piercing Connector 500-4/0 AWG

Item Code: 751313
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref IPCS5040

Document
Call for Availability
Add to Favorites
Compare

Description

Insulation Piercing Connector 500 MCM - 2/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

Specifications

Weight

1.21lb

Width

6.05mm

Length

10.35mm

AD All Features

Safe to use, versatile and reliable

AD Application

For copper to copper, copper to aluminum and aluminum to aluminum, splice and tap power connectors

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

CONNECTOR INSULATION PIERCING AL/COPPER

AD Item Features 01

Safe to use, versatile and reliable

AD Item Features 02

No need to strip wire and totally insulated

AD Item Features 03

No tape or cover needed

AD Item Features 04

No contact at any point with a live part

AD Item Features 05

Exclusive turbo spacer keeps tap side open while main conductor is being tightened

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

10.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.2100

AD Package Weight UOM

LB

AD Package Width

6.0500

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black

Spec 10 Attribute

Type

Spec 10 Attribute Value

Dual Rated

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 2 Attribute

Conductor Size

Spec 2 Attribute Value

2/0 AWG to 500 kcmil

Spec 3 Attribute

Conductor Type

Spec 3 Attribute Value

ALUMINUM/COPPER

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

3.9 in L x 3 in W x 4.5 in H

Spec 5 Attribute

Material

Spec 5 Attribute Value

Fiber Reinforced Thermal Plastic

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Clamping

Spec 7 Attribute

Series

Spec 7 Attribute Value

IPCS

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

405 A Copper, 315 A Aluminum

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

90
