NSi Industries

IPLD1/0-5 - NSI IPLD1/0-5 Polaris Insulated Dse 1/0-14 5Pt Culus Listed Wire Connector

Category Small Terminals & Connectors

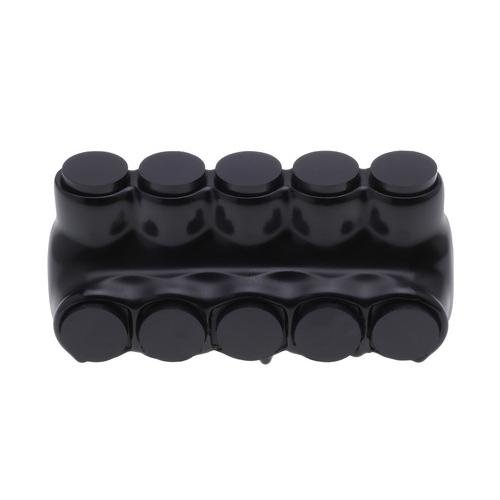

Picture of IPLD1/0-5 - NSI IPLD1/0-5 Polaris Insulated Dse 1/0-14 5Pt Culus Listed Wire Connector Picture of IPLD1/0-5 - NSI IPLD1/0-5 Polaris Insulated Dse 1/0-14 5Pt Culus Listed Wire Connector
Picture of IPLD1/0-5 - NSI IPLD1/0-5 Polaris Insulated Dse 1/0-14 5Pt Culus Listed Wire Connector Picture of IPLD1/0-5 - NSI IPLD1/0-5 Polaris Insulated Dse 1/0-14 5Pt Culus Listed Wire Connector
NSi Industries

IPLD1/0-5 - NSI IPLD1/0-5 Polaris Insulated Dse 1/0-14 5Pt Culus Listed Wire Connector

Item Code: 1173523
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref IPLD1/0-5

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Polaris IPLD1/0-5 Multi-Tap Dual-Sided Entry Black Connector features 5 ports sized for 1/0 AWG - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

Specifications

AD Application

Solution for forming a secure connection between up to three conductors in applications including cable trays, panel boards, ducts, raceways or troughs

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

MECH I CBL TAPS 14TO1/0AWG12TO1/0AWG

AD Item Features 01

Dual-Sided Wire Entry, Form secure connections between 5 conductors quickly using the double-side entry ports sized for wires between 1/0 AWG and 14 AWG

AD Item Features 02

Ergonomic Design, Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip

AD Item Features 03

Removable Plugs, Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector

AD Item Features 04

Pre-filled Oxide Inhibitor, All 5 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance

AD Manufacturer (Description)

NSi Industries

AD Package Quantity

1

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Conductor Size

Spec 1 Attribute Value

14 to 1/0 AWG,12 to 1/0 AWG

Spec 10 Attribute

Type

Spec 10 Attribute Value

Connector

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V

Spec 11 Attribute Value

600

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

COPPER/ALUMINUM

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1.69 in H x 1.83 in W x 3.54 in L

Spec 4 Attribute

Finish

Spec 4 Attribute Value

Black

Spec 5 Attribute

Material

Spec 5 Attribute Value

Plastisol

Spec 6 Attribute

Resistance

Spec 6 Attribute Value

Abrasion/Chemical/UV

Spec 7 Attribute

Series

Spec 7 Attribute Value

IPL1/0

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

5 Conductor/Class B and C Wire Type/80 in-lb Torque/3/16 in Hex/Wrench

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

-45 to 90
