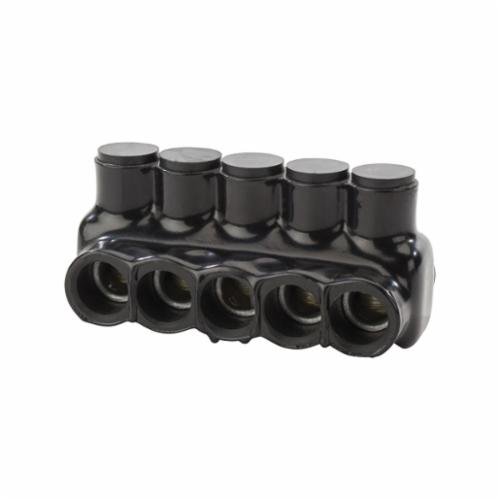

IPLD250-5 - Polaris™ Ins Multi-Tap 250 5 Port DSE
Description
Specifications
0.58
2.28
4.66
8625084
For aluminum and copper cables and wire termination
NSI
USA
US
Instruction/Installation Manual
Technical Bulletin
00662381923035
8625084
CONNECTOR MULTI-TAP INSULATED AL/COPPER
Dual-Sided Wire Entry, Form secure connections between 5 conductors quickly using the double-side entry ports sized for wires between 250 MCM and 6 AWG
Ergonomic Design, Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
Removable Plugs, Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
Pre-filled Oxide Inhibitor, All 5 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
Parallel Rated, This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects
Polaris IPLD250-5 IPLD Double Sided Entry Insulated Multi-Tap Connector, 6 AWG to 250 kcmil Aluminum/Copper Conductor, Plastisol ; NSi Industries ; NSI ; IPLD2505 ; 662381923035 ; Mechanical Insulated Cable Taps
NSi Industries
IN
4.6600
IN
1
0.5800
LB
2.2800
IN
IPLD250-5 ; IPLD2505 ; 8625084 ; 662381923035 ; 66238192303 ; 00662381923035
NSi Industries
Conductor Size
6 AWG to 250 KCMIL
Voltage Rating
V AC
600
Conductor Type
ALUMINUM/COPPER

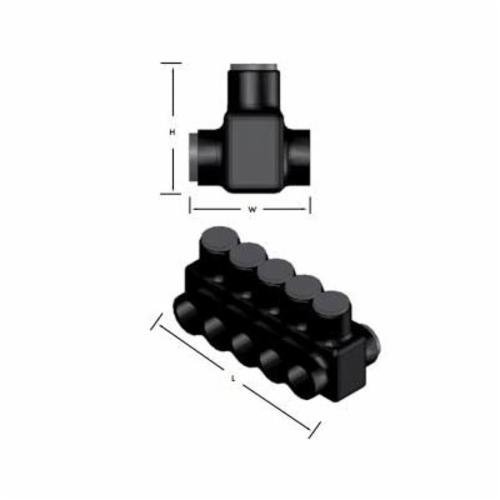

Dimensions
4.66 in L x 2.28 in W x 2.18 in H
Finish
Black
Material
Plastisol
Series
IPLD
Specifications
1 Pole, 5 Conductor, Class B and C Wire Type, 5/16 in Hex
Temperature Rating
deg C
-45 to 90
Type
Double Sided Entry
