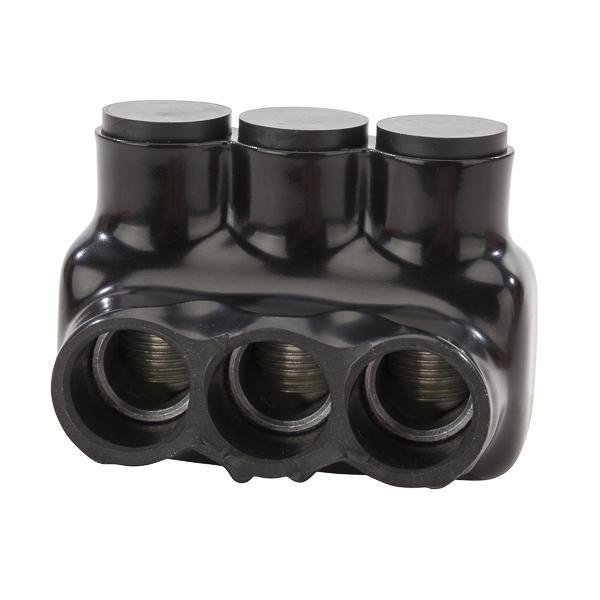

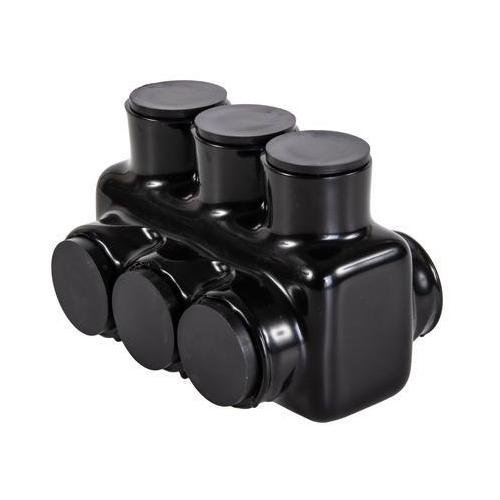

IPLD350-3 - Polaris™ Ins Multi-Tap 350 3 Port DSE
Description
Specifications
0.59lb
2.41mm
3.52mm
For aluminum and copper cables and wire termination
NSi Industries
USA
US
CONNECTOR MULTI-TAP INSULATED AL/COPPER
Dual-Sided Wire Entry, Form secure connections between 3 conductors quickly using the double-side entry ports sized for wires between 350 MCM and 6 AWG
Ergonomic Design, Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
Removable Plugs, Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
Pre-filled Oxide Inhibitor, All 3 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
NSi Industries
IN
3.5200
IN
1
0.5900
LB
2.4100
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Conductor Size
6 AWG to 350 kcmil
Voltage Rating
V AC
600
Conductor Type
ALUMINUM/COPPER
Dimensions
3.52 in L x 2.41 in W x 2.61 in H
Finish
Black
Material
Plastisol
Series
IPLD
Specifications
1 Pole, 3 Conductor, Class B and C Wire Type, 5/16 in Hex
Temperature Rating
deg C
-45 to 90
Type
Double Sided Entry
