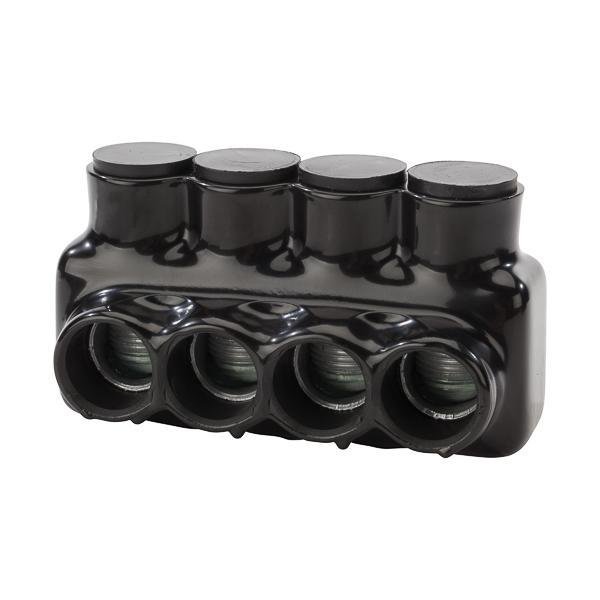

IPLD600-4 - Polaris™ Ins Multi-Tap 600 4 Port DSE
Description
Specifications
1.7lb
2.96mm
5.85mm
For aluminum and copper cables and wire termination
NSi Industries
USA
US
CONNECTOR MULTI-TAP INSULATED AL/COPPER
Dual-Sided Wire Entry, Form secure connections between 4 conductors quickly using the double-side entry ports sized for wires between 600 MCM and 6 AWG
Ergonomic Design, Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
Removable Plugs, Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
Pre-filled Oxide Inhibitor, All 4 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
Parallel Rated, This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects
NSi Industries
IN
5.8500
IN
1
1.7000
LB
2.9600
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Conductor Size
6 AWG to 600 kcmil
Voltage Rating
V AC
600
Conductor Type
ALUMINUM/COPPER
Dimensions
5.85 in L x 2.96 in W x 3.03 in H
Finish
Black
Material
Plastisol
Series
IPLD
Specifications
1 Pole, 4 Conductor, Class B and C Wire Type, 5/16 in Hex
Temperature Rating
deg C
-45 to 75
Type
Double Sided Entry
