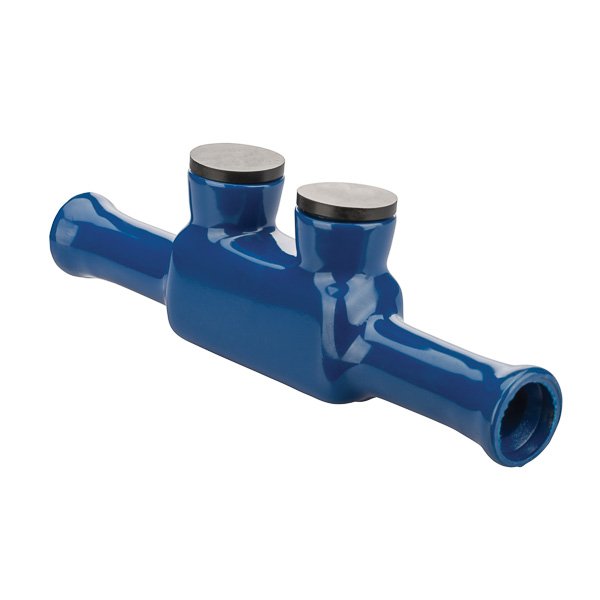

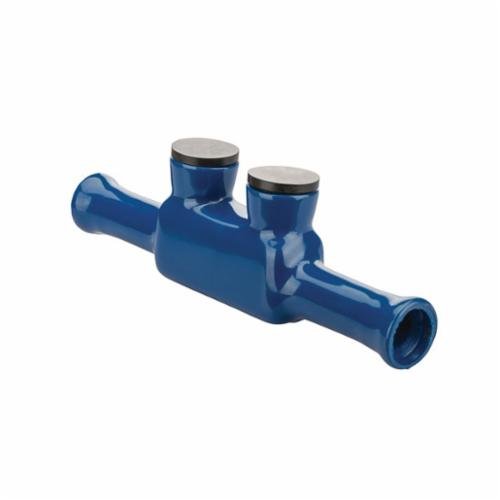

ISW-250 - In Line Splicer/Reducer
Description
Specifications
For direct burial, submersible, connecting two wires and wire termination
NSi Industries
USA
US
SPLICER/REDUCER IN-L AL/COPPER PLASTISOL
Insulated with dielectric strength plastisol for tough mechanical protection
Molded for precise fit and supplied with removable access plugs over the hex screws
Will not support combustion
Not recommended for fine stranded, flexible wire
Requires no taping, compounds, heat shrink or cutting-to-size in the field
NSi Industries
1
https://www.youtube.com/watch?v=QoH6nXFdLPM
NSi Industries
SPLICES, CLOSURES, TRAYS
Conductor Size
4/0 AWG to 250 kcmil
Conductor Type
ALUMINUM/COPPER
Dimensions
7.563 in L x 1.188 in W x 2.125 in H
Finish
Blue
Material
Plastisol
Series
ISW
Specifications
1 Pole, 2 Conductor, URD/USE Wire Type, 5/16 in Hex, 1-1/8 in Stripe Length, 0.618 to 895 in Insulation Dia
Temperature Rating
deg C
-45 to 90
Voltage Rating
V AC
600
