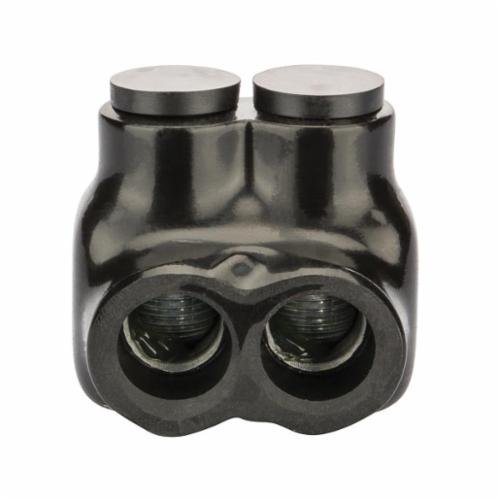

IT-3/0 - Polaris™ Ins 2 Port 3/0
Description
Specifications
0.19lb
1.75mm
1.84mm
For aluminum and copper cables, in-line splicers/reducers and wire termination
NSi Industries
USA
US
CONNECTOR MULTI-TAP INSULATED AL/COPPER
Single-Side Wire Entry, Form secure connections between 2 conductors quickly using the single-sided entry ports sized for wires between 3/0 and 6 AWG
Ergonomic Design, Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
Removable Plugs, Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
Pre-filled Oxide Inhibitor, Both single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
Professional Performance, The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance
NSi Industries
IN
1.8400
IN
1
0.1900
LB
1.7500
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Conductor Size
AWG
6 to 3/0
Voltage Rating
V AC
600
Conductor Type
ALUMINUM/COPPER
Dimensions
1.84 in L x 1.75 in W x 1.87 in H
Finish
Black
Material
Plastisol
Series
IT Series
Specifications
1 Pole, 2 Conductor, Class B and C Wire Type, 1/4 in Hex
Temperature Rating
deg C
-45 to 90
Type
Double Sided Entry
