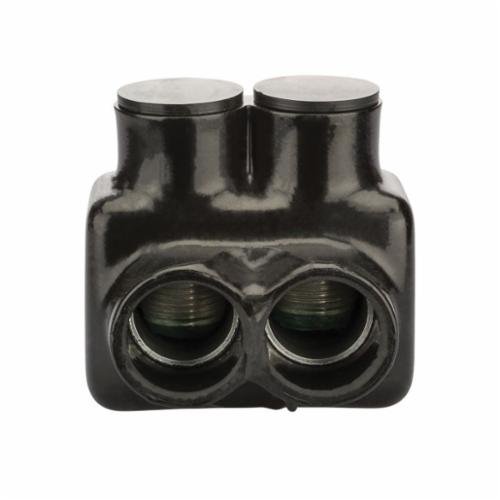

IT-750 - Polaris™ Ins 2 Port 750
Description
Specifications
0.94lb
3.5mm
3.48mm
For aluminum and copper cables, in-line splicers/reducers and wire termination
NSi Industries
USA
US
CONNECTOR MULTI-TAP INSULATED AL/COPPER
Dual-Side Wire Entry, Form secure connections between 2 conductors quickly using the double-sided entry ports sized for wires between 750 and 250 MCM
Ergonomic Design, Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
Removable Plugs, Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
Pre-filled Oxide Inhibitor, Both dual-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
Professional Performance, The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance
NSi Industries
IN
3.4800
IN
1
0.9400
LB
3.5000
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Conductor Size
kcmil
250 to 750
Voltage Rating
V AC
600
Conductor Type
ALUMINUM/COPPER
Dimensions
3.48 in L x 3.5 in W x 3.5 in H
Finish
Black
Material
Plastisol
Series
IT Series
Specifications
1 Pole, 2 Conductor, Class B and C Wire Type, 3/8 in Hex
Temperature Rating
deg C
-45 to 90
Type
Double Sided Entry
