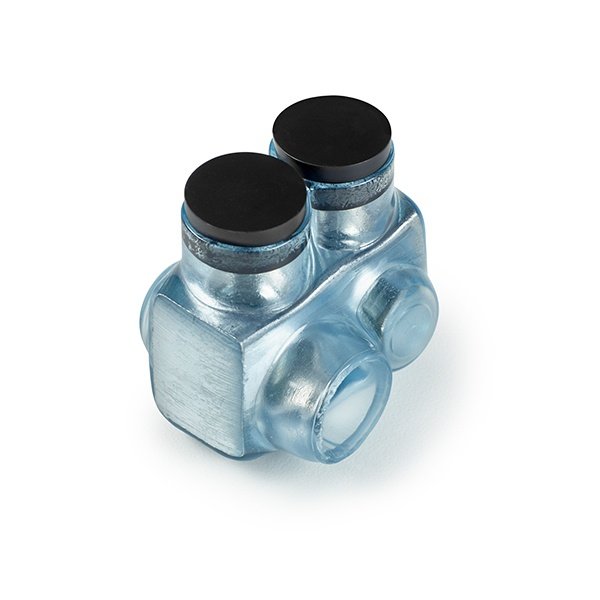

ITO-3/0C - Polaris Vision Tap™ Ins 2 Port 3/0 OS
Description
Specifications
0.19lb
1.87mm
1.84mm
Dry Location and Wire Termination Applications
NSi Industries
USA
US
CONNECTOR PRE-INSULATED 6 TO 3/0AWG 600V
Clear Exterior, Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
Ergonomic Design, Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
Removable Plugs, Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
Pre-filled Oxide Inhibitor, Both offset entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
Professional Performance, The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance
NSi Industries
IN
1.8400
IN
1
0.1900
LB
1.8700
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Conductor Size
AWG
6 to 3/0
Conductor Type
COPPER/ALUMINUM
Dimensions
1.84 in L x 1.87 in W x 1.87 in H
Material
Plastisol
Series
ITO
Specifications
1-Pole, 2-Conductor, Class B, C Wire, 1/4 in Hex/Wrench
Temperature Rating
deg C
90
Type
Double Sided Entry Dual Rated
Voltage Rating
V
600
