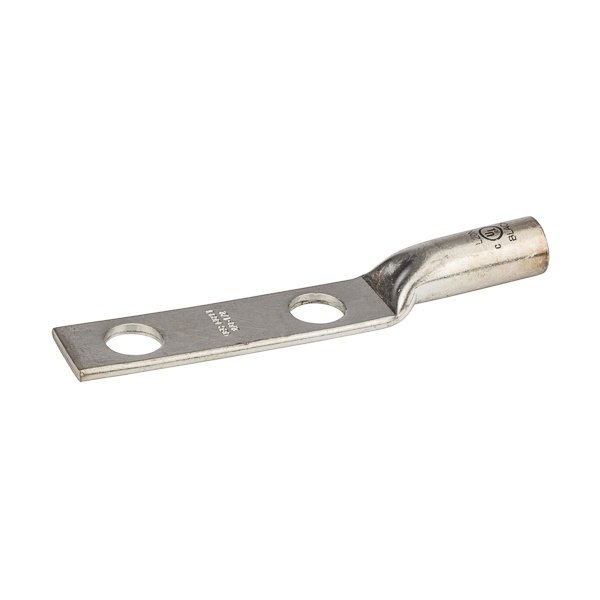

L20N - Copper Compression Lug Long 2/0 AWG
Description
Specifications
3.75lb
0.81mm
4.61mm
Terminate, Splice and Tap Power Connector Applications
NSi Industries
USA
IN
LUG COMPRESSION 2/0AWG STRD 1/2IN COPPER
Produced from high conductivity copper tubing
Allows easy inspection of the termination to assure complete cable insertion
Tin plated to provide corrosion and low contact resistance
Marked with die index and color coded
Listed for 35 kV maximum when properly installed
For applications greater than 2000 V, install to cable manufacturer voltage stress relief instructions
NSi Industries
IN
4.6100
IN
1
3.7500
LB
0.8100
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Barrel Size
0.44 in ID x 0.56 in OD x 1.38 in L
Specifications
1-3/4 in hole spacing
Stud Size
IN
2-Jan
Temperature Rating
deg C
90
Tongue Size
2.99 in L x 0.81 in W x 0.12 in THK
Type
2-Hole
Voltage Rating
V AC
600
Barrel Type
Long
Color
Black
Conductor Size
AWG
Feb-00
Conductor Type
Stranded
Material
Copper
Mounting Hole Size
IN
2-Jan
Overall Length
IN
4.61
Series
LN Series
