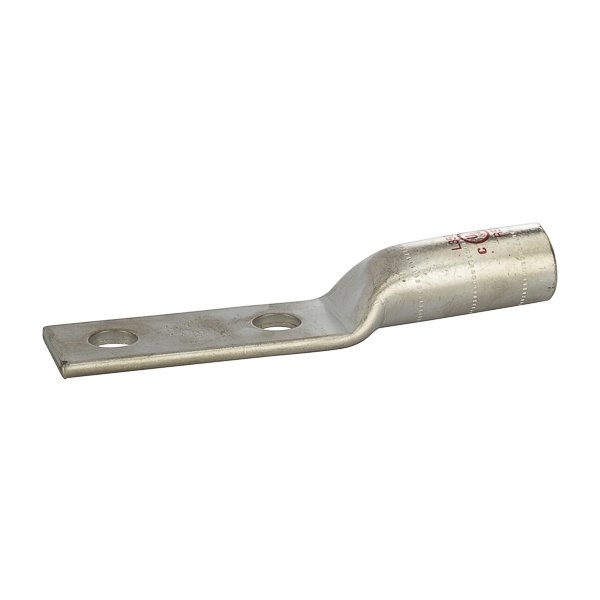

L350N - Copper Compression Lug Long 350 MCM
Description
Specifications
4.8lb
1.28mm
5.39mm
Terminate, Splice and Tap Power Connector Applications
NSi Industries
USA
IN
LUG COMPRESSION 350KCMIL STRD 1/2IN LONG
Produced from high conductivity copper tubing
Allows easy inspection of the termination to assure complete cable insertion
Tin plated to provide corrosion and low contact resistance
Marked with die index and color coded
Listed for 35 kV maximum when properly installed
For applications greater than 2000 V, install to cable manufacturer voltage stress relief instructions
NSi Industries
IN
5.3900
IN
1
4.8000
LB
1.2800
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Barrel Size
0.7 in ID x 0.87 in OD x 1.97 in L
Specifications
1-3/4 in hole spacing
Stud Size
IN
2-Jan
Temperature Rating
deg C
90
Tongue Size
2.99 in L x 1.28 in W x 0.17 in THK
Type
2-Hole
Voltage Rating
V AC
600
Barrel Type
Long
Color
Red
Conductor Size
kcmil
350
Conductor Type
Stranded
Material
Copper
Mounting Hole Size
IN
2-Jan
Overall Length
IN
5.39
Series
LN Series
