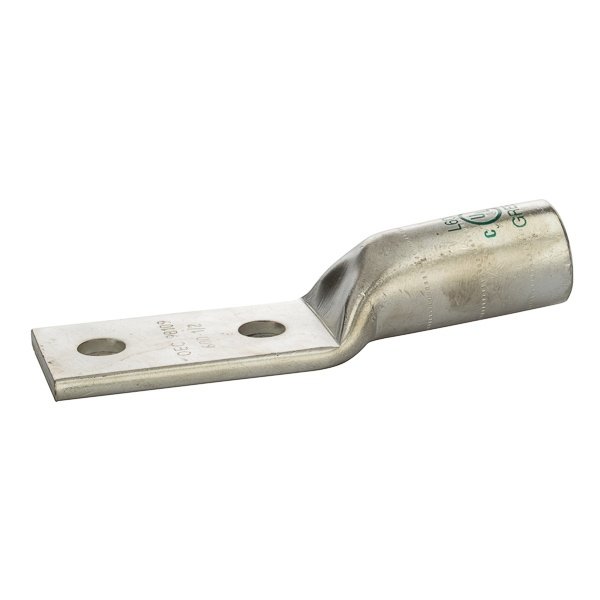

L600N - Copper Compression Lug Long 600 MCM
Description
Specifications
5.22lb
1.72mm
5.79mm
For splice, tap power connectors and terminate
NSi Industries
USA
IN
LUG COMPRESSION 600KCMIL STRD 1/2IN LONG
Long barrel copper compression lugs is a type of copper compression connector that is produced from high conductivity copper tubing
They are tin plated to provide corrosion resistance and are marked with die index and color coded for easy reference
Listed for 35 kV maximum when properly installed
1-3/4 in hole spacing
NSi Industries
IN
5.7900
IN
1
5.2200
LB
1.7200
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Barrel Size
0.93 in ID x 1.19 in OD
Stud Size
IN
2-Jan
Temperature Rating
deg C
90
Tongue Size
2.99 in L x 1.72 in W x 0.25 in THK
Type
2-Hole
Voltage Rating
V AC
600
Barrel Type
Long
Color
Green
Conductor Size
kcmil
600
Conductor Type
Stranded
Dimensions
1.72 in W
Material
Copper
Mounting Hole Size
IN
2-Jan
Overall Length
IN
5.79
