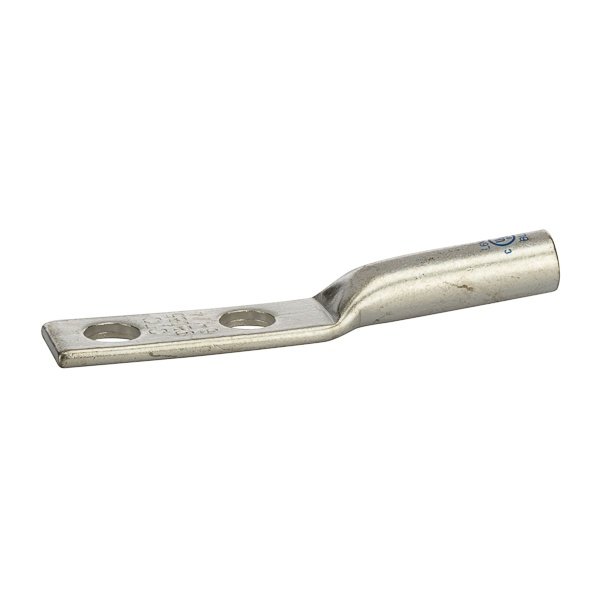

L6N-14 - Copper Compression Lug Long 6 AWG
Description
Specifications
4lb
0.42mm
2.36mm
For terminate, splice, tap power connectors, grounding and bonding applications
NSi Industries
USA
IN
LUG COMPRESSION 6AWG STRD 1/4IN 600V BL
Produced from high conductivity copper tubing
Allows easy inspection of the termination to assure complete cable insertion
Tin plated to provide corrosion and low contact resistance
Marked with die index and color coded
Listed for 35 kV maximum when properly installed
For applications greater than 2000 VAC, installed to cable manufacturer voltage stress relief instructions
NSi Industries
IN
2.3600
IN
1
4.0000
LB
0.4200
IN
NSi Industries
SMALL TERMINALS & CONNECTORS
Barrel Size
0.2 in ID x 0.3 in OD x 0.98 in L
Specifications
5/8 in Hole Spacing
Stud Size
IN
4-Jan
Temperature Rating
deg C
90
Tongue Size
1.26 in L x 0.42 in W x 0.08 in THK
Type
2-Hole
Voltage Rating
V
600
Barrel Type
Long
Color
Blue
Conductor Size
AWG
6
Conductor Type
Stranded
Material
Tin Plated Copper
Mounting Hole Size
IN
4-Jan
Overall Length
IN
2.36
Series
LN Series
