NSi Industries

N-1/0SP - Copper Split Bolt 1/0 Tin Plated

Category Small Terminals & Connectors

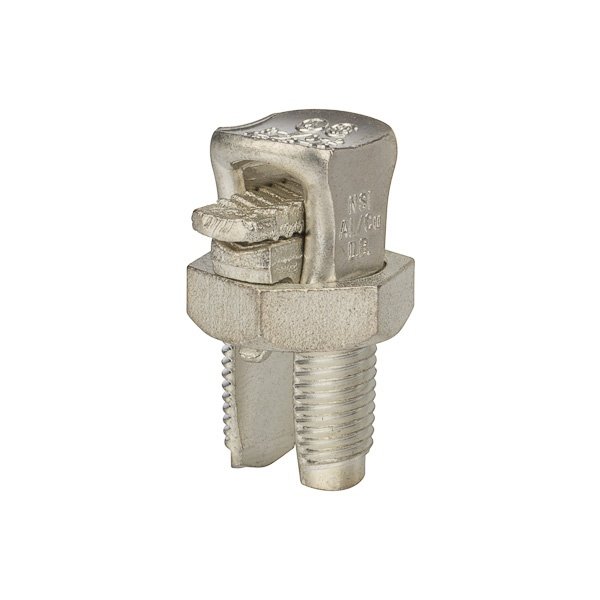

Picture of N-1/0SP - Copper Split Bolt 1/0 Tin Plated Picture of N-1/0SP - Copper Split Bolt 1/0 Tin Plated
Picture of N-1/0SP - Copper Split Bolt 1/0 Tin Plated Picture of N-1/0SP - Copper Split Bolt 1/0 Tin Plated
NSi Industries

N-1/0SP - Copper Split Bolt 1/0 Tin Plated

Item Code: 749141
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref N-1/0SP

Document
Call for Availability
Add to Favorites
Compare

Description

All Purpose Split Bolt Connector 1/0 AWG All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

Specifications

Weight

0.15lb

Width

1.1mm

Length

1.7mm

AD All Features

Electro-tinned body

AD Application

For combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper and steel to copper applications and wire termination

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

BR

AD Includes

Nut, Spacer, Pressure Pad

AD Invoice Description

CONNECTOR SPLIT BOLT 6 TO 1/0AWG 600VAC

AD Item Features 01

Electro-tinned body

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

1.7000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.1500

AD Package Weight UOM

LB

AD Package Width

1.1000

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Bolt Size

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

0.787 x 1.417

Spec 10 Attribute

Type

Spec 10 Attribute Value

All-purpose

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 2 Attribute

Conductor Size

Spec 2 Attribute UOM

AWG

Spec 2 Attribute Value

6 to 1/0

Spec 3 Attribute

Conductor Type

Spec 3 Attribute Value

ACSR/Aluminum/Copper/Solid/Stranded

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

1.417 in L x 0.787 in W

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Tin Plated

Spec 6 Attribute

Material

Spec 6 Attribute Value

Copper

Spec 7 Attribute

Series

Spec 7 Attribute Value

N-SP

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

1 Pole, 2 Conductor, 0.38 in Split, 1 in Hex Nut, 385 in-lb Torque

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

90
