NSi Industries

N-250SP - Copper Split Bolt 250 Tin Plated

Category Small Terminals & Connectors

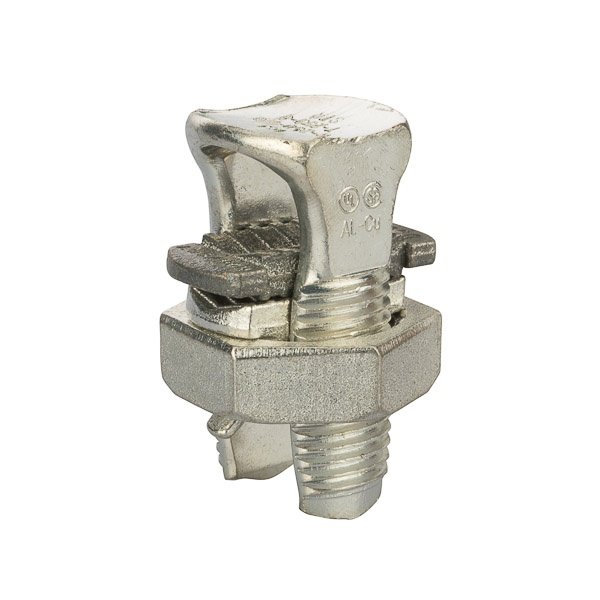

Picture of N-250SP - Copper Split Bolt 250 Tin Plated Picture of N-250SP - Copper Split Bolt 250 Tin Plated
Picture of N-250SP - Copper Split Bolt 250 Tin Plated Picture of N-250SP - Copper Split Bolt 250 Tin Plated
NSi Industries

N-250SP - Copper Split Bolt 250 Tin Plated

Item Code: 750227
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref N-250SP

Document
Call for Availability
Add to Favorites
Compare

Description

All Purpose Split Bolt Connector 250 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

Specifications

Weight

0.4lb

Width

1.55mm

Length

2.15mm

AD All Features

Electro-tinned body

AD Application

For combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper and steel to copper applications and wire termination

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

BR

AD Includes

Nut, Spacer, Pressure Pad

AD Invoice Description

CONNECTOR SPLIT BOLT 1.12 X 2.106IN N-SP

AD Item Features 01

Electro-tinned body

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

2.1500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4000

AD Package Weight UOM

LB

AD Package Width

1.5500

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Bolt Size

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

1.12 x 2.106

Spec 10 Attribute

Type

Spec 10 Attribute Value

All-purpose

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 2 Attribute

Conductor Size

Spec 2 Attribute Value

1/0 AWG to 250 kcmil

Spec 3 Attribute

Conductor Type

Spec 3 Attribute Value

ACSR/Aluminum/Copper/Solid/Stranded

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

2.106 in L x 1.102 in W

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Tin Plated

Spec 6 Attribute

Material

Spec 6 Attribute Value

Copper

Spec 7 Attribute

Series

Spec 7 Attribute Value

N-SP

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

1 Pole, 2 Conductor, 0.6 in Split, 1.38 in Hex Nut, 650 in-lb Torque

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

90
