NSi Industries

N-750SP - Copper Split Bolt 750 Tin Plated

Category Small Terminals & Connectors

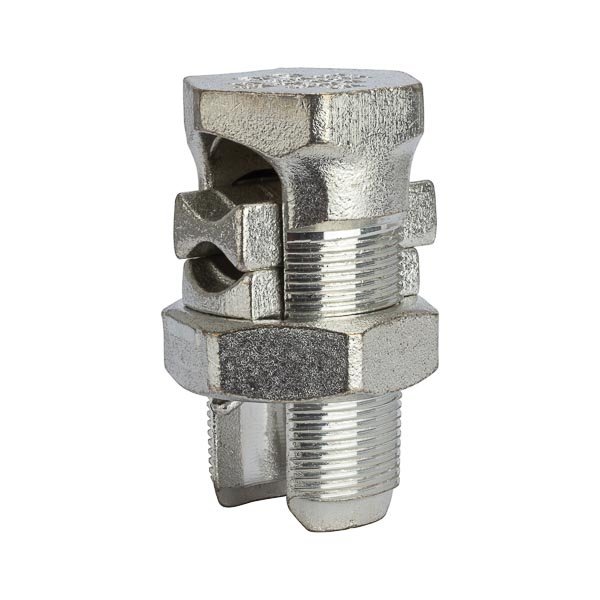

Picture of N-750SP - Copper Split Bolt 750 Tin Plated
NSi Industries

N-750SP - Copper Split Bolt 750 Tin Plated

Item Code: 753145
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref N-750SP

Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

All Purpose Split Bolt Connector 750 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

Specifications

Weight

1.68lb

Width

2.6mm

Length

3.45mm

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Color

Copper

Conductor Size

250 to 750 kcmil

Conductor Type

ACSR/Stranded

Dimensions

3.75 in L x 2.13 in W

Finish

Tin Plated

Material

Copper

Series

N-SP Series

Specifications

2-Conductor, 1-Pole

Temperature Rating

90 deg C

Type

All Purpose Dual Rated

Voltage Rating

600 V AC
