NSi Industries

PTO-3/0 - Aluminum Pin Terminal Al Pin OS 3/0 AWG

Category Small Terminals & Connectors

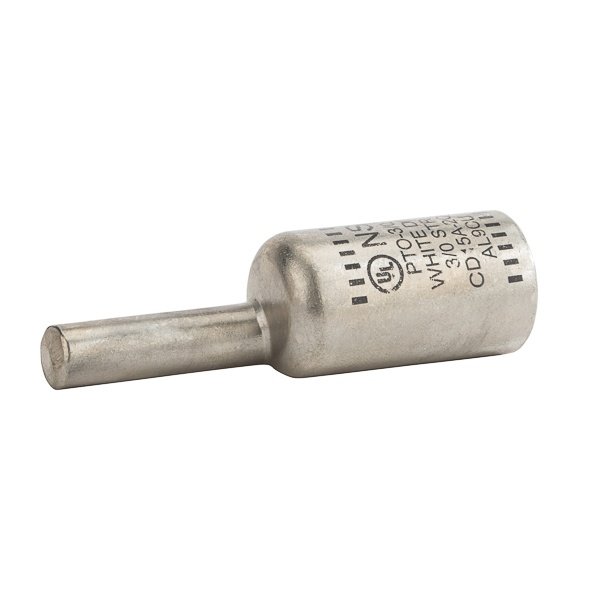

Picture of PTO-3/0 - Aluminum Pin Terminal Al Pin OS 3/0 AWG
NSi Industries

PTO-3/0 - Aluminum Pin Terminal Al Pin OS 3/0 AWG

Item Code: 777177
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref PTO-3/0
Login for Pricing & Availability
Add to Favorites
Compare

Fetching product details


Description

Offset Pin Terminal 3/0 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

Specifications

  • Brand : NSi Industries
  • Category : SMALL TERMINALS & CONNECTORS
  • Color : White
  • Environmental Conditions : 90 Degrees Celsius
  • Finish : Tin-Plated
  • Insulation Material : Plastisol Cover
  • Manufacturer Part Number : PTO-3/0
  • Material : Aluminum
  • Number of Conductors : 1
  • Temperature Rating : 90 Degrees Celsius
  • Voltage : 600 Volts
  • Wire Size : 3/0 american wire gauge
