NSi Industries

PTO-500 - Aluminum Pin Terminal Al Pin OS 500 MCM

Category Small Terminals & Connectors

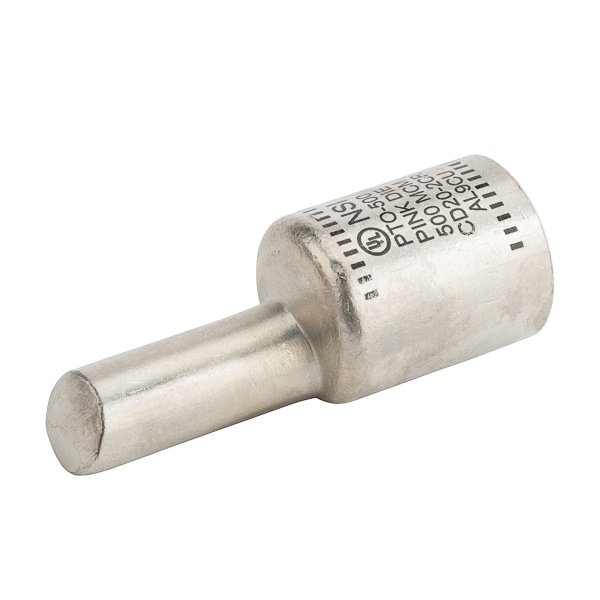

Picture of PTO-500 - Aluminum Pin Terminal Al Pin OS 500 MCM Picture of PTO-500 - Aluminum Pin Terminal Al Pin OS 500 MCM
Picture of PTO-500 - Aluminum Pin Terminal Al Pin OS 500 MCM Picture of PTO-500 - Aluminum Pin Terminal Al Pin OS 500 MCM
NSi Industries

PTO-500 - Aluminum Pin Terminal Al Pin OS 500 MCM

Item Code: 750805
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref PTO-500

Catalog
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Offset Pin Terminal 500 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

Specifications

Weight

0.33lb

Width

4.05mm

Length

5.9mm

Barrel Length

1.7 in

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Color Code

Pink

Conductor Size

500 kcmil

Dimensions

3.39 in L

Material

Aluminum

Pin Diameter

0.68 in

Pin Length

1.68 in

Series

PTO

Specifications

90 deg C Temperature, 1 Pole, 1 Conductor, 0.842 in ID x 1.31 in OD Barrel, Plastisol Cover Insulation, Tin Plated Finish

Type

Dual Rated

Voltage Rating

600 V AC
