NSi Industries

PTO-750 - Aluminum Pin Terminal Al Pin OS 750 MCM

Category Small Terminals & Connectors

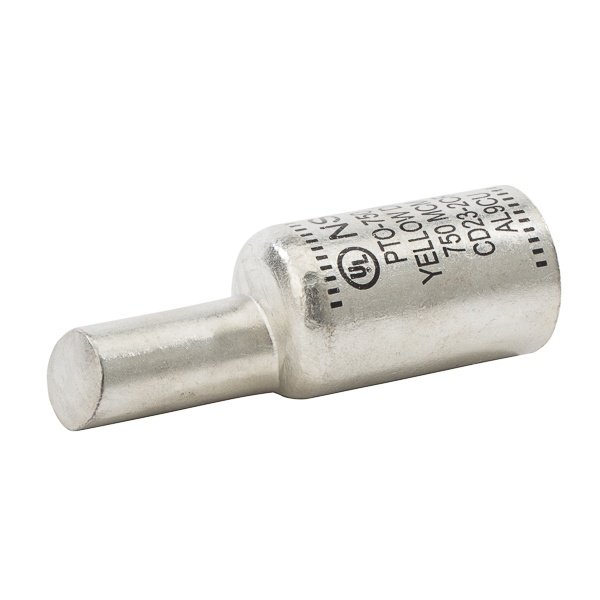

Picture of PTO-750 - Aluminum Pin Terminal Al Pin OS 750 MCM Picture of PTO-750 - Aluminum Pin Terminal Al Pin OS 750 MCM
Picture of PTO-750 - Aluminum Pin Terminal Al Pin OS 750 MCM Picture of PTO-750 - Aluminum Pin Terminal Al Pin OS 750 MCM
NSi Industries

PTO-750 - Aluminum Pin Terminal Al Pin OS 750 MCM

Item Code: 758777
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref PTO-750

Document
Call for Availability
Add to Favorites
Compare

Description

Offset Pin Terminal 750 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

Specifications

Weight

0.52lb

Width

4.5mm

Length

5.9mm

AD All Features

Dual rated for both aluminum and copper conductors

AD Application

For splice, tap power connectors and terminate

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

IN

AD Invoice Description

TERMINAL OFS PIN 750 KCMIL YEL 0.81IN AL

AD Item Features 01

Dual rated for both aluminum and copper conductors

AD Item Features 02

Solid aluminum, tin plated pin providing high conductivity and corrosion resistance

AD Item Features 03

Prefilled with with oxide inhibitor

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

5.9000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.5200

AD Package Weight UOM

LB

AD Package Width

4.5000

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Length

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

2.46

Spec 10 Attribute

Type

Spec 10 Attribute Value

Dual Rated

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 2 Attribute

Color Code

Spec 2 Attribute Value

Yellow

Spec 3 Attribute

Conductor Size

Spec 3 Attribute Value

750 kcmil

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

4.19 in L

Spec 5 Attribute

Material

Spec 5 Attribute Value

Aluminum

Spec 6 Attribute

Pin Diameter

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

0.81

Spec 7 Attribute

Pin Length

Spec 7 Attribute UOM

IN

Spec 7 Attribute Value

1.72

Spec 8 Attribute

Series

Spec 8 Attribute Value

PTO

Spec 9 Attribute

Specifications

Spec 9 Attribute Value

90 deg C Temperature, 1 Pole, 1 Conductor, 1.03 in ID x 1.46 in OD Barrel, Plastisol Cover Insulation, Tin Plated Finish
