NSi Industries

PTS750 - Aluminum Pin Terminal Al Pin 750 MCM

Category Small Terminals & Connectors

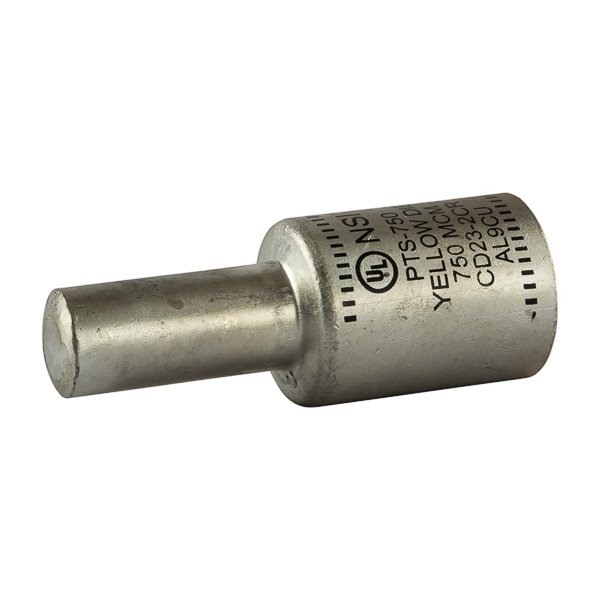

Picture of PTS750 - Aluminum Pin Terminal Al Pin 750 MCM Picture of PTS750 - Aluminum Pin Terminal Al Pin 750 MCM
Picture of PTS750 - Aluminum Pin Terminal Al Pin 750 MCM Picture of PTS750 - Aluminum Pin Terminal Al Pin 750 MCM
NSi Industries

PTS750 - Aluminum Pin Terminal Al Pin 750 MCM

Item Code: 756857
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref PTS750

Document
Call for Availability
Add to Favorites
Compare

Description

Solid Pin Terminal for Copper and Aluminum Conductors 750 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

Specifications

Weight

0.14lb

Width

1.5mm

Length

2.05mm

AD All Features

Solid aluminum, tin plated pin providing high conductivity and corrosion resistance

AD Application

Terminate, Splice and Tap Power Connector Applications

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

IN

AD Invoice Description

TERMINAL PIN 500 TO 750KCMIL 0.81IN AL

AD Item Features 01

Solid aluminum, tin plated pin providing high conductivity and corrosion resistance

AD Item Features 02

Cover provided for quick installation

AD Item Features 03

Prefilled with with oxide inhibitor

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

2.0500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.1400

AD Package Weight UOM

LB

AD Package Width

1.5000

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Length

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

2.03

Spec 10 Attribute

Specifications

Spec 10 Attribute Value

1-Conductor, 1-Pole, 1.02 in ID x 1.46 in OD Barrel

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

90

Spec 12 Attribute

Type

Spec 12 Attribute Value

Centered Dual Rated

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600

Spec 2 Attribute

Color

Spec 2 Attribute Value

Yellow

Spec 3 Attribute

Conductor Size

Spec 3 Attribute UOM

kcmil

Spec 3 Attribute Value

500 To 750

Spec 4 Attribute

Conductor Type

Spec 4 Attribute Value

Stranded Copper

Spec 5 Attribute

Material

Spec 5 Attribute Value

Aluminum

Spec 6 Attribute

Overall Length

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

3.79

Spec 7 Attribute

Pin Diameter

Spec 7 Attribute UOM

IN

Spec 7 Attribute Value

0.81

Spec 8 Attribute

Pin Length

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

1.75

Spec 9 Attribute

Series

Spec 9 Attribute Value

PTS Series
