NSi Industries

R12-10V-S - 12-10 Vinyl Ring #10 Stud

Category Small Terminals & Connectors

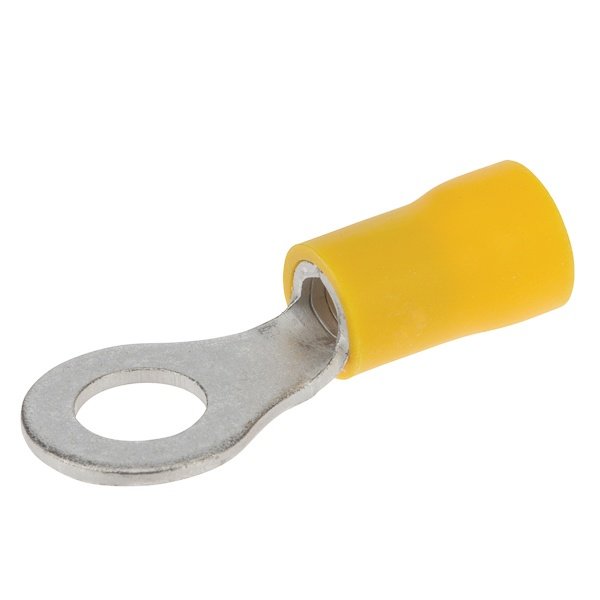

Picture of R12-10V-S - 12-10 Vinyl Ring #10 Stud Picture of R12-10V-S - 12-10 Vinyl Ring #10 Stud
Picture of R12-10V-S - 12-10 Vinyl Ring #10 Stud Picture of R12-10V-S - 12-10 Vinyl Ring #10 Stud
NSi Industries

R12-10V-S - 12-10 Vinyl Ring #10 Stud

Item Code: 828907
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref R12-10V-S
Minimum order quantity 10

Document
Document
Call for Availability
Add to Favorites
Compare

Description

12-10 AWG Vinyl Insulated Ring Terminal #10 Stud Vinyl ring terminals are basic tongue ring terminals. Safe and reliable connections because it cannot be disconnected unless the screw is completely removed. Vinyl insulated ring terminals are made of tin-plated copper with brazed seam, vinyl (PVC). 300V, 75 degrees C. FEATURES: STYLE: Standard MATERIAL: Vinyl QUANTITY: 15 Count WIRE SIZE: 12-10 AWG STUD SIZE: 10 LENGTH: 1.003 WIDTH: 0.374 BRAND EQUIVALENT: Burndy TP1010 Morris Products 10064 Ilsco 44222-B10 Thomas & Betts 10RC10 Penn Union R4C10

Purchasing Quantities

EACH

1

PACK

10

Specifications

Weight

0.07lb

Width

0.37mm

Length

1mm

AD All Features

Basic tongue type ring terminal

AD Application

Wire Termination Applications

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

TW

AD Invoice Description

TERMINAL RING 12 TO 10AWG 1.003IN COPPER

AD Item Features 01

Basic tongue type ring terminal

AD Item Features 02

Safe and reliable connections, because it cannot be disconnected unless the screw is completely removed

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

1.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0700

AD Package Weight UOM

LB

AD Package Width

0.3700

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Size

Spec 1 Attribute Value

0.1338 in ID x 0.2559 in OD x 0.4921 in L

Spec 10 Attribute

Stud Size

Spec 10 Attribute Value

#10

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

75

Spec 12 Attribute

Tongue Size

Spec 12 Attribute Value

0.374 in W

Spec 13 Attribute

Type

Spec 13 Attribute Value

Standard

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

300

Spec 2 Attribute

Barrel Type

Spec 2 Attribute Value

Brazed Seam

Spec 3 Attribute

Color

Spec 3 Attribute Value

Yellow

Spec 4 Attribute

Conductor Size

Spec 4 Attribute UOM

AWG

Spec 4 Attribute Value

12 To 10

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Electro-plated Tin

Spec 6 Attribute

Length

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

1.003

Spec 7 Attribute

Material

Spec 7 Attribute Value

Copper

Spec 8 Attribute

Series

Spec 8 Attribute Value

R Series

Spec 9 Attribute

Specifications

Spec 9 Attribute Value

1-Terminal, Vinyl Insulated
