NSi Industries

R22-10V-S - 22-18 Vinyl Ring #10 Stud

Category Small Terminals & Connectors

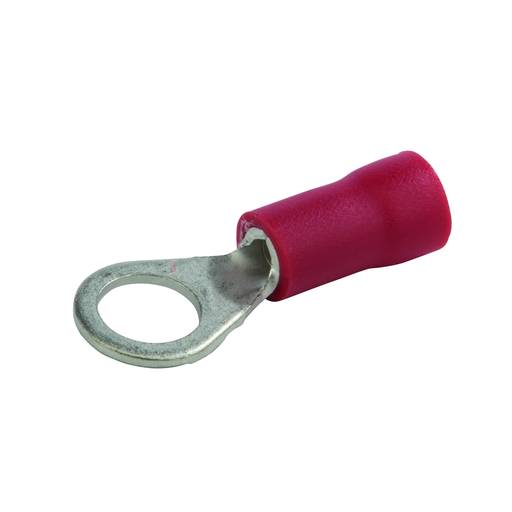

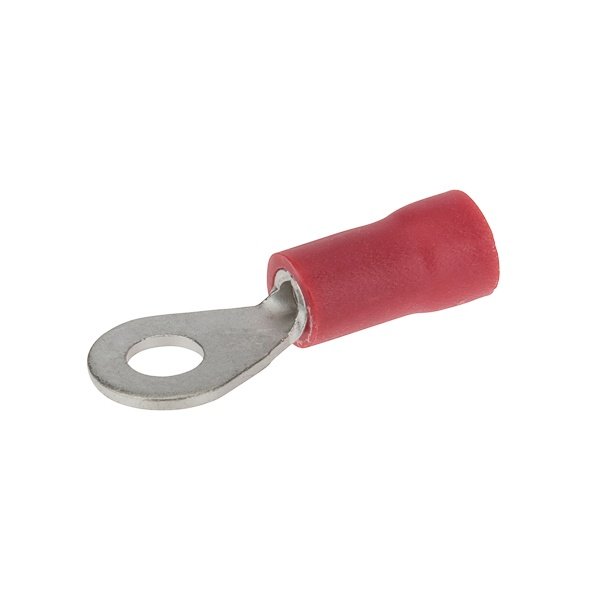

Picture of R22-10V-S - 22-18 Vinyl Ring #10 Stud Picture of R22-10V-S - 22-18 Vinyl Ring #10 Stud
Picture of R22-10V-S - 22-18 Vinyl Ring #10 Stud Picture of R22-10V-S - 22-18 Vinyl Ring #10 Stud
NSi Industries

R22-10V-S - 22-18 Vinyl Ring #10 Stud

Item Code: 895248
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref R22-10V-S
Minimum order quantity 25

Document
Call for Availability
Add to Favorites
Compare

Description

22-18 AWG Vinyl Insulated Ring Terminal #10 Stud Vinyl ring terminals are basic tongue ring terminals. Safe and reliable connections because it cannot be disconnected unless the screw is completely removed. Vinyl insulated ring terminals are made of tin-plated copper with brazed seam, vinyl (PVC). 300V, 75 degrees C. FEATURES: STYLE: Standard MATERIAL: Vinyl QUANTITY: 25 Count WIRE SIZE: 22-18 AWG STUD SIZE: 10 LENGTH: 0.826 WIDTH: 0.314 BRAND EQUIVALENT: Morris Products 01016 Penn Union R4A10 Ilsco 44203-B10

Specifications

Weight

0.05lb

Width

0.31mm

Length

0.83mm

AD All Features

Safe and reliable connections because it cannot be disconnected unless the screw is completely removed

AD Application

For wire termination

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

TW

AD Invoice Description

TERMINAL RING 22 TO 18AWG 0.826IN COPPER

AD Item Features 01

Safe and reliable connections because it cannot be disconnected unless the screw is completely removed

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

0.8300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0500

AD Package Weight UOM

LB

AD Package Width

0.3100

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Type

Spec 1 Attribute Value

Brazed Seam

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

75

Spec 11 Attribute

Tongue Size

Spec 11 Attribute Value

0.314 in W

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

300

Spec 2 Attribute

Color

Spec 2 Attribute Value

Red

Spec 3 Attribute

Conductor Size

Spec 3 Attribute UOM

AWG

Spec 3 Attribute Value

22 To 18

Spec 4 Attribute

Finish

Spec 4 Attribute Value

Tin Plated

Spec 5 Attribute

Length

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

0.826

Spec 6 Attribute

Material

Spec 6 Attribute Value

Copper

Spec 7 Attribute

Series

Spec 7 Attribute Value

R Series

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

Vinyl Insulation, 1 Terminal

Spec 9 Attribute

Stud Size

Spec 9 Attribute Value

#10
