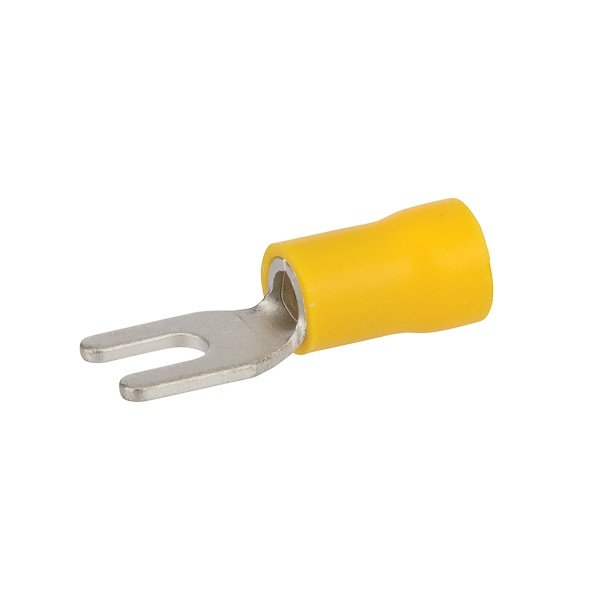

S12-10V-S - 12-10 Vinyl Spade #10 Stud
Item Code: 828935
Category
Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref S12-10V-S
Minimum order quantity 15
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Purchasing Quantities
EACH
1
PACK
15
Specifications
Weight
0.07lb
Width
0.38mm
Length
1.1mm
AD All Features
Spade terminal have open tongue end for rapid insertion on the mounting screw
AD Application
Wire Termination Applications
AD Brand (Description)
NSi Industries
AD Country
USA
AD Country Of Origin
TW
AD Invoice Description
TERMINAL SPADE 12 TO 10AWG 1.103IN YEL
AD Item Features 01
Spade terminal have open tongue end for rapid insertion on the mounting screw
AD Item Features 02
Typically used on free standing studs
AD Manufacturer (Description)
NSi Industries
AD Package Height UOM
IN
AD Package Length
1.1000
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
0.0700
AD Package Weight UOM
LB
AD Package Width
0.3800
AD Package Width UOM
IN
Brand
NSi Industries
Category
SMALL TERMINALS & CONNECTORS
Spec 1 Attribute
Barrel Size
Spec 1 Attribute Value
0.133 in ID x 0.255 in OD x 0.492 in L
Spec 10 Attribute
Stud Size
Spec 10 Attribute Value
#10
Spec 11 Attribute
Temperature Rating
Spec 11 Attribute UOM
deg C
Spec 11 Attribute Value
75
Spec 12 Attribute
Tongue Size
Spec 12 Attribute Value
3/8 in W
Spec 13 Attribute
Tongue Type
Spec 13 Attribute Value
Spade
Spec 14 Attribute
Voltage Rating
Spec 14 Attribute UOM
V
Spec 14 Attribute Value
300
Spec 2 Attribute
Barrel Type
Spec 2 Attribute Value
Butted Seam
Spec 3 Attribute
Color
Spec 3 Attribute Value
Yellow
Spec 4 Attribute
Conductor Size
Spec 4 Attribute UOM
AWG
Spec 4 Attribute Value
12 To 10
Spec 5 Attribute
Finish
Spec 5 Attribute Value
Electro-plated Tin
Spec 6 Attribute
Length
Spec 6 Attribute UOM
IN
Spec 6 Attribute Value
1.103
Spec 7 Attribute
Material
Spec 7 Attribute Value
Copper
Spec 8 Attribute
Series
Spec 8 Attribute Value
S Series
Spec 9 Attribute
Specifications
Spec 9 Attribute Value
1-Terminal, Vinyl Insulated
