NSi Industries

S16-10V-S - 16-14 Vinyl Spade #10 Stud

Category Small Terminals & Connectors

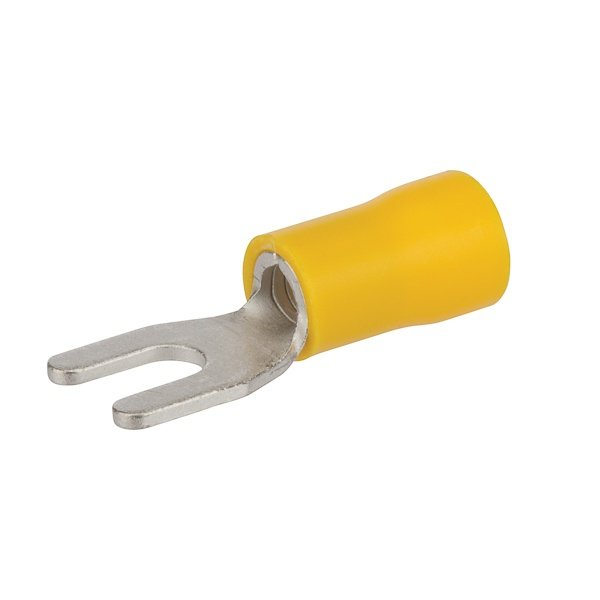

Picture of S16-10V-S - 16-14 Vinyl Spade #10 Stud Picture of S16-10V-S - 16-14 Vinyl Spade #10 Stud
Picture of S16-10V-S - 16-14 Vinyl Spade #10 Stud Picture of S16-10V-S - 16-14 Vinyl Spade #10 Stud
NSi Industries

S16-10V-S - 16-14 Vinyl Spade #10 Stud

Item Code: 828931
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref S16-10V-S
Minimum order quantity 20

Document
Document
Call for Availability
Add to Favorites
Compare

Description

16-14 AWG Vinyl Insulated Spade Terminal #10 Stud Vinyl spade terminals have an open tongue end for rapid insertion on the mounting screw. Typically used on free-standing studs. Vinyl insulated spade terminals are made of electro tin-plated copper, vinyl (PVC). 300V, 75 degrees C. FEATURES: STYLE: Standard MATERIAL: Vinyl QUANTITY: 20 Count WIRE SIZE: 16-14 AWG STUD SIZE: 10 LENGTH: 0.966 WIDTH: 0.362 BRAND EQUIVALENT: Burndy TP1410F, Penn Union S4B-10 Thomas & Betts 14RB10F Morris Products 10136 Ideal 83-7171

Specifications

Weight

0.06lb

Width

0.34mm

Length

0.87mm

AD All Features

Spade terminal have open tongue end for rapid insertion on the mounting screw

AD Application

Wire Termination Applications

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

TW

AD Invoice Description

TERMINAL SPADE 16 TO 14AWG 0.966IN BL

AD Item Features 01

Spade terminal have open tongue end for rapid insertion on the mounting screw

AD Item Features 02

Typically used on free standing studs

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

0.8700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0600

AD Package Weight UOM

LB

AD Package Width

0.3400

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Size

Spec 1 Attribute Value

0.09 in ID x 0.177 in OD x 0.393 in L

Spec 10 Attribute

Stud Size

Spec 10 Attribute Value

#10

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

75

Spec 12 Attribute

Tongue Size

Spec 12 Attribute Value

0.362 in W

Spec 13 Attribute

Tongue Type

Spec 13 Attribute Value

Spade

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V

Spec 14 Attribute Value

300

Spec 2 Attribute

Barrel Type

Spec 2 Attribute Value

Butted Seam

Spec 3 Attribute

Color

Spec 3 Attribute Value

Blue

Spec 4 Attribute

Conductor Size

Spec 4 Attribute UOM

AWG

Spec 4 Attribute Value

16 To 14

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Electro-plated Tin

Spec 6 Attribute

Length

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

0.966

Spec 7 Attribute

Material

Spec 7 Attribute Value

Copper

Spec 8 Attribute

Series

Spec 8 Attribute Value

S Series

Spec 9 Attribute

Specifications

Spec 9 Attribute Value

1-Terminal, Vinyl Insulated
