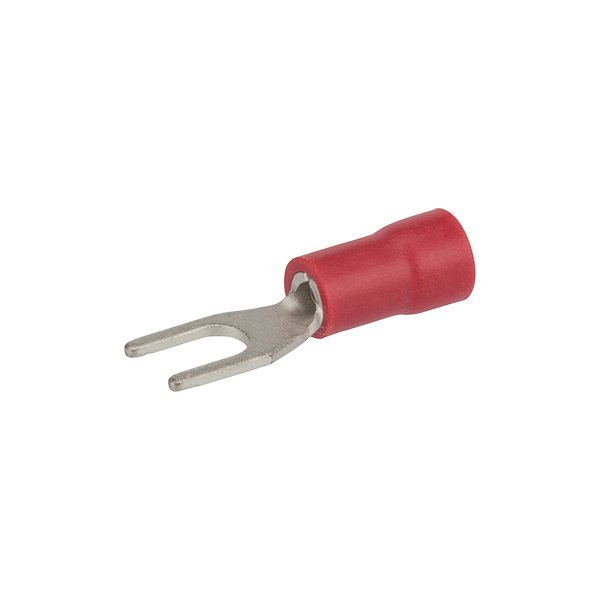

S22-6V-S - 22-18 Vinyl Spade #6 Stud
Item Code: 828925
Category
Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref S22-6V-S
Minimum order quantity 25
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
0.06lb
Width
0.23mm
Length
0.83mm
AD All Features
Open tongue end for rapid insertion on the mounting screw
AD Application
For wire termination
AD Brand (Description)
NSi Industries
AD Country
USA
AD Country Of Origin
TW
AD Invoice Description
TERMINAL SPADE 22 TO 18AWG #6 0.826IN R
AD Item Features 01
Open tongue end for rapid insertion on the mounting screw
AD Item Features 02
Typically used on free standing studs
AD Manufacturer (Description)
NSi Industries
AD Package Height UOM
IN
AD Package Length
0.8300
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
0.0600
AD Package Weight UOM
LB
AD Package Width
0.2300
AD Package Width UOM
IN
Brand
NSi Industries
Category
SMALL TERMINALS & CONNECTORS
Spec 1 Attribute
Color
Spec 1 Attribute Value
Red
Spec 10 Attribute
Tongue Size
Spec 10 Attribute Value
0.228 in W
Spec 11 Attribute
Voltage Rating
Spec 11 Attribute UOM
V AC
Spec 11 Attribute Value
300
Spec 2 Attribute
Conductor Size
Spec 2 Attribute UOM
AWG
Spec 2 Attribute Value
22 To 18
Spec 3 Attribute
Finish
Spec 3 Attribute Value
Electro-Tin Plated
Spec 4 Attribute
Length
Spec 4 Attribute UOM
IN
Spec 4 Attribute Value
0.826
Spec 5 Attribute
Material
Spec 5 Attribute Value
Copper
Spec 6 Attribute
Series
Spec 6 Attribute Value
S Series
Spec 7 Attribute
Specifications
Spec 7 Attribute Value
Vinyl Insulation, 1 Terminal
Spec 8 Attribute
Stud Size
Spec 8 Attribute Value
#6
Spec 9 Attribute
Temperature Rating
Spec 9 Attribute UOM
deg C
Spec 9 Attribute Value
75
