NSi Industries

SC-4 - Copper Compression Splice Short 4 AWG

Category Small Terminals & Connectors

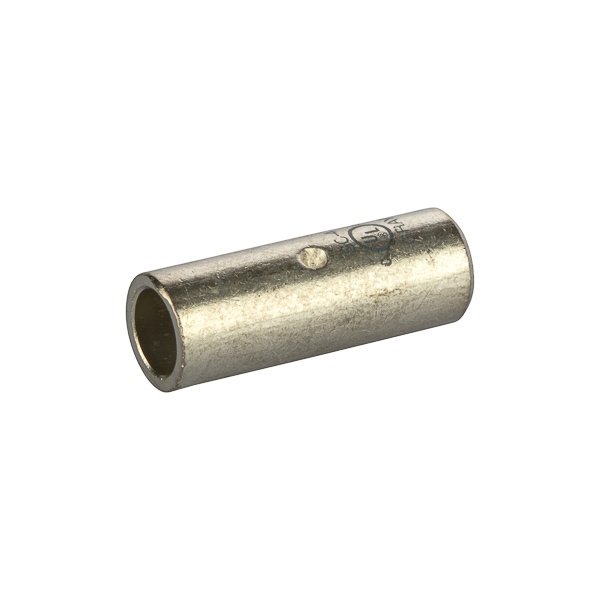

Picture of SC-4 - Copper Compression Splice Short 4 AWG Picture of SC-4 - Copper Compression Splice Short 4 AWG
Picture of SC-4 - Copper Compression Splice Short 4 AWG Picture of SC-4 - Copper Compression Splice Short 4 AWG
NSi Industries

SC-4 - Copper Compression Splice Short 4 AWG

Item Code: 763047
Category Small Terminals & Connectors
Manufacturer NSI INDUSTRIES
Manufacturer Ref SC-4

Document
Call for Availability
Add to Favorites
Compare

Description

StandardBarrel TinnedCopperSplice4 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

Specifications

Weight

2.6lb

Width

0.34mm

Length

1mm

AD Application

For splice, tap power connectors and terminate

AD Brand (Description)

NSi Industries

AD Country

USA

AD Country Of Origin

IN

AD Invoice Description

SPLICE COMPRESSION STRD COPPER 4AWG 1IN

AD Item Features 01

Produced from high conductivity copper tubing

AD Item Features 02

Serrations indicate proper crimp locations

AD Item Features 03

Tin plated to provide corrosion resistance

AD Item Features 04

Marked with die index and color coded for easy reference

AD Item Features 05

Suitable for use at voltages up to 35 kV provided connector is properly taped

AD Item Features 06

5 kV is the maximum voltage in all bare splices

AD Item Features 07

For applications greater than 2000 V, consult the cable manufacturer for voltage stress relief instructions

AD Item Features 08

Listed for 35 kV maximum when properly installed

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

1.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.6000

AD Package Weight UOM

LB

AD Package Width

0.3400

AD Package Width UOM

IN

Brand

NSi Industries

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Size

Spec 1 Attribute Value

0.25 in ID x 0.34 in OD

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

90

Spec 11 Attribute

Type

Spec 11 Attribute Value

Dual Rated

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 2 Attribute

Barrel Type

Spec 2 Attribute Value

Short

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Conductor Size

Spec 4 Attribute UOM

AWG

Spec 4 Attribute Value

4

Spec 5 Attribute

Conductor Type

Spec 5 Attribute Value

Stranded Copper

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Tin Plated

Spec 7 Attribute

Length

Spec 7 Attribute UOM

IN

Spec 7 Attribute Value

1

Spec 8 Attribute

Material

Spec 8 Attribute Value

Copper

Spec 9 Attribute

Specifications

Spec 9 Attribute Value

1 Pole, 2 Conductor
