A70L - Broan Flex™ Series 70 CFM 2.0 Sones Ventilation Fan Light
Description
Specifications
10lb
8.5mm
12.13mm
9.25mm
Nutone
USA
Damper/Duct Connector
COMBO FAN/LT INCAND 120VAC GALVS 1 1.3A
70 CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 65 square feet, so your vision will always be clear and your surroundings will always be comfortable

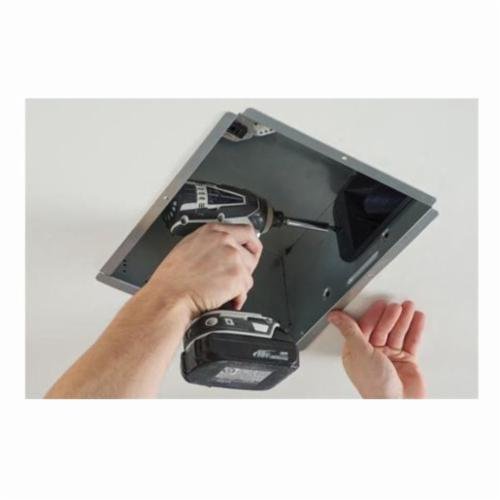

Retrofit installations can be done entirely from the room side no attic access required, this means a faster, easier installation, so you can move on to something else
With our TrueSeal™ damper technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
EzDuct™ Connector can be installed room side with no attic access required, fan housing connection have never been easier
UL Listed for use over tubs and showers with a GFCI circuit, so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
100W maximum incandescent A19 type bulb or energy efficient equivalent bulb with maximum overall length (MOL) of 4.4 in or less (bulb not included)

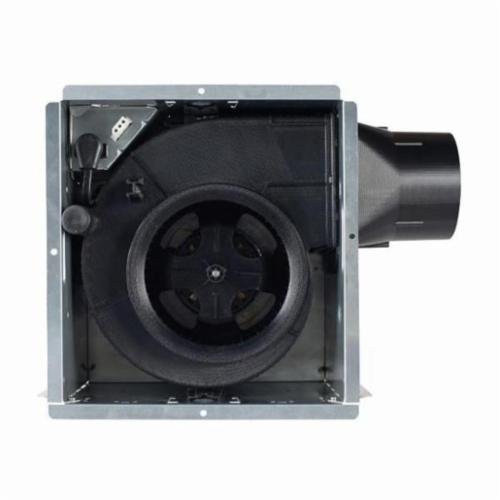

Plug-in, permanently lubricated motor engineered for continuous operation
Dynamically balanced centrifugal bowler wheel for quite efficient performance
Low RPM for quiet operation
Rugged, 26 gauge, galvanized steel construction
Polymeric, 4 in duct connector with tapered sleeve and no metallic clatter
Innovative design the result of extensive research with designers and consumers
Durable steel reflector with white enamel finish

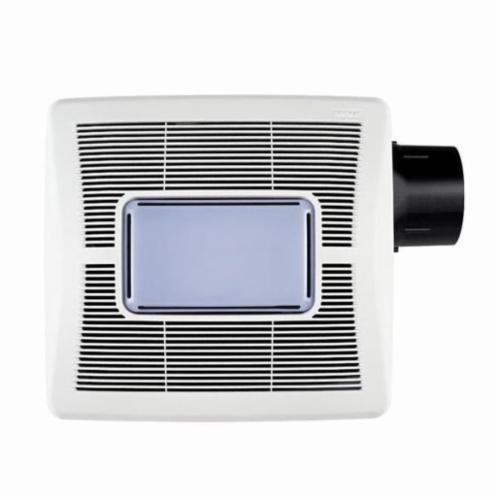

11-7/16 in L x 12-1/8 in W white polymeric grille
2 sones sound
70 cfm at 0.10 in/60 cfm at 0.25 in
Broan-NuTone
1
10.0000
LB
Broan-NuTone
EXHAUST FANS & COMPONENTS
Air Flow Rate
CFM
70/60
Type
Single Speed
Voltage Rating
V AC
120
Amperage Rating
A
1.3
Dimensions
9-1/4 in L x 10 in W x 5-3/4 in H
Fan Motor Wattage
W
42.3
Housing Material
Galvanized Steel
Lamp Base Type
A19
Lamp Wattage
W
100
Mounting Type
Ceiling
Number of Lamps
1
