Ocal

HUB11/2-G - Hub11/2-G 1-1/2" PVC Coated Hub Connector

Category Steel Rigid Conduit Fittings

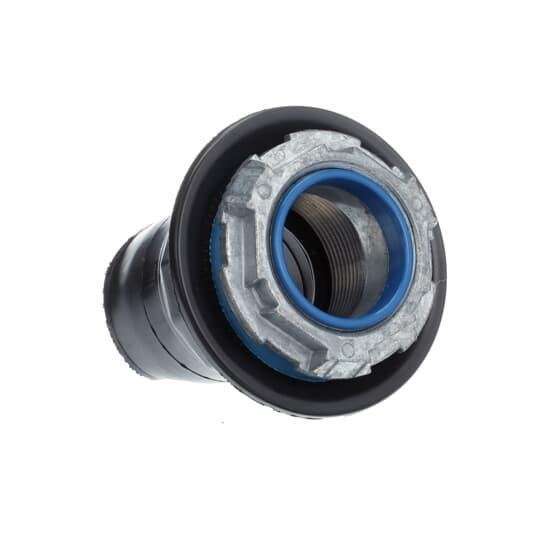

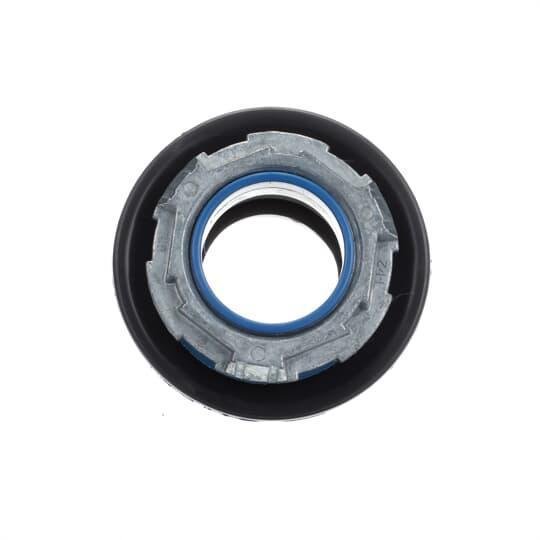

Picture of HUB11/2-G - Hub11/2-G 1-1/2" PVC Coated Hub Connector Picture of HUB11/2-G - Hub11/2-G 1-1/2" PVC Coated Hub Connector
Picture of HUB11/2-G - Hub11/2-G 1-1/2" PVC Coated Hub Connector Picture of HUB11/2-G - Hub11/2-G 1-1/2" PVC Coated Hub Connector
Picture of HUB11/2-G - Hub11/2-G 1-1/2" PVC Coated Hub Connector Picture of HUB11/2-G - Hub11/2-G 1-1/2" PVC Coated Hub Connector
Picture of HUB11/2-G - Hub11/2-G 1-1/2" PVC Coated Hub Connector Picture of HUB11/2-G - Hub11/2-G 1-1/2" PVC Coated Hub Connector
Ocal

HUB11/2-G - Hub11/2-G 1-1/2" PVC Coated Hub Connector

Item Code: 581460
Category Steel Rigid Conduit Fittings
Manufacturer ABB
Manufacturer Ref HUB11/2-G

Document
Call for Availability
Add to Favorites
Compare

Description

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1-1/2 Inch/41 Metric, Overall Diameter 2.75 Inch/69.85 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.53 Inch/38.86 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

Specifications

Weight

0.68lb

Width

0.01mm

Length

0.01mm

AD Application

For used to positively bond conduit to box or enclosure

AD Brand (Description)

Ocal

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

CONNECTOR HUB KO 1-1/2IN ZINC PVC CTD

AD Item Features 01

Captive sealing ring won't buckle or slip during installation and provides a complete 360 deg seal even when conduit isn't perpendicular to the enclosure

AD Item Features 02

Hexagonal/Splined Body and Locknut Enables Fast and Easy Installation

AD Item Features 03

Sharper and deeper teeth provide a more penetrating bite for improved bonding to the enclosure

AD Item Features 04

Zinc or copper-free aluminum with a nominal 0.04 in PVC coating bonded to exterior - in blue, white, gray or custom colors

AD Item Features 05

Pressure sealing sleeves protect connections

AD Item Features 06

Nitrile (Buna-N) sealing ring

AD Item Features 07

1.53 in dia throat

AD Item Features 08

1/4 in THK maximum panel

AD Item Features 09

105 deg C temperature

AD Item Features 10

1-1/2 IN Pipe

AD Manufacturer (Description)

ABB

AD Package Height UOM

IN

AD Package Length

0.0100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.6800

AD Package Weight UOM

LB

AD Package Width

0.0100

AD Package Width UOM

IN

Brand

Ocal

Category

STEEL RIGID CONDUIT FITTINGS

Spec 1 Attribute

Color

Spec 1 Attribute Value

Dark Gray

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

2.75 in OD x 1.88 in H

Spec 3 Attribute

Finish

Spec 3 Attribute Value

PVC Coated

Spec 4 Attribute

Material

Spec 4 Attribute Value

Zinc

Spec 5 Attribute

Size

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

1/1/2002

Spec 6 Attribute

Suitable For Use With

Spec 6 Attribute Value

Conduit Body and Fitting
